Agricultural Gearbox Series
EP Rotary Tiller Gearbox
Replacement of Comer Code TB-19J
Model: EP-TB-19J | Category: Rotary Tiller Gearbox / Agricultural Gearbox

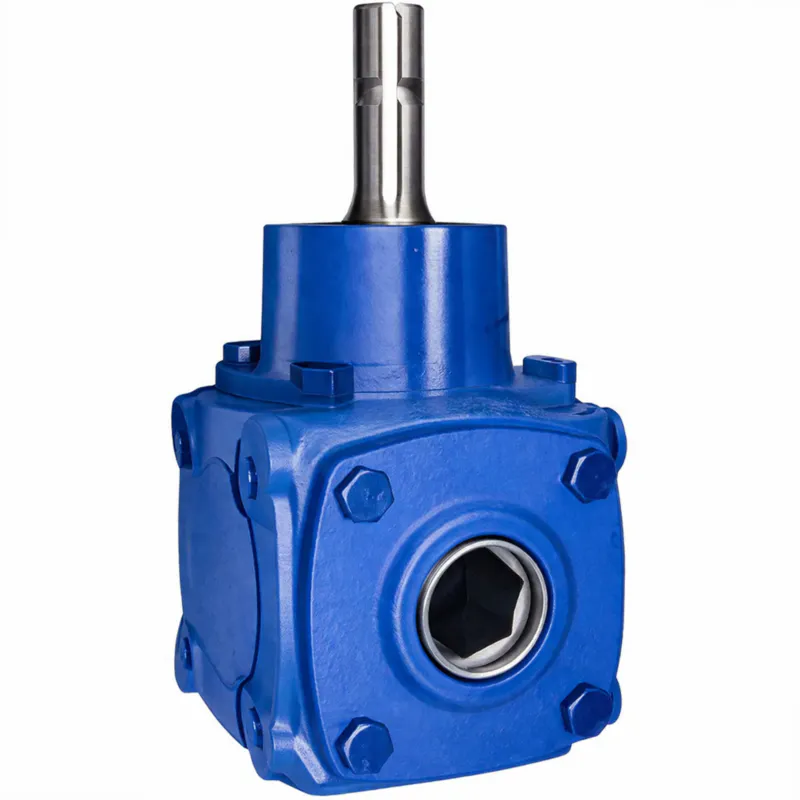

EP Rotary Tiller Gearbox – Replacement of Comer Code TB-19J
Key Specs at a Glance:
- Gear Ratio (i): 1.46
- Input Speed (N1): 540 rpm
- Input Power (P1): 16.9 kW
- Output Torque (M2): 423 Nm
- Input Shaft Z: 1″ 3/8 Z6

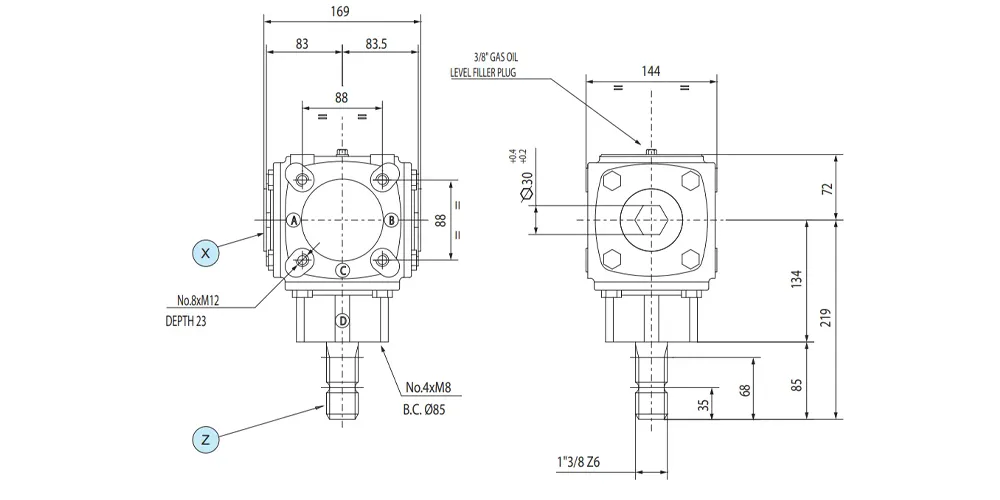

1. Technical Parameters – EP Rotary Tiller Gearbox TB-19J
| i | 1.46 |
| N₁ [rpm] | 540 |
| P₁ [kW] | 16.9 |
| M₂ [Nm] | 423 |
| Shaft X | 30 |
| Shaft Z | 1″ 3/8 Z6 |
| Input | Z |
2. How Does a Rotary Tiller Gearbox Work?
Understanding how a rotary tiller gearbox works helps operators maintain it correctly and select the right unit for their tractors. The working principle begins at the tractor’s power take-off (PTO) port, which delivers rotational power at a standardized speed—typically 540 rpm for most category I and II tractors. A PTO shaft connects this output to the gearbox input shaft.
Inside the housing, the input shaft meshes with a bevel gear set that redirects and transforms the rotational axis—usually from horizontal (inline with the tractor’s drive train) to a perpendicular orientation that drives the tiller’s transverse shaft. The gear ratio of 1.46 in this unit means the output shaft turns approximately 1.46 times for every single rotation of the input shaft, giving the tiller blades a higher rotational speed than raw PTO speed would provide.
The output shaft (Shaft X, 30 mm diameter) drives the tine shaft directly, rotating the cutting blades in a pattern determined by the operator’s depth and speed settings. The sealed bearing arrangement and oil-immersed gears work together to absorb the significant radial and axial loads generated when the tines impact hard soil, stones, or compacted earth. This combination of mechanical advantage and impact resilience makes the gearbox for tiller the most critical transmission component in the machine.
3. Material Construction
The durability of a rotary tiller gearbox depends heavily on the materials used at each critical interface. The EP TB-19J is manufactured using materials selected specifically for agricultural environments, where exposure to soil moisture, fertilizers, mechanical impact, and temperature cycling would degrade lesser components within a single growing season.
The housing is pressure die-cast from EN AC-46000 aluminum alloy, chosen for its excellent strength-to-weight ratio and natural resistance to corrosion in humid field environments. The gear sets are machined from 20CrMnTi alloy steel, carburized and case-hardened to a surface hardness of HRC 58–62, while retaining a tough, impact-absorbing core. This dual-property treatment allows gears to handle shock loads from stone strikes without brittle fracture.
Bearings are selected from high-grade tapered roller types at primary load points and deep-groove ball bearings at secondary positions, all meeting ABEC-5 tolerance standards. Oil seals are double-lip NBR (nitrile rubber) units rated for continuous service in muddy and abrasive conditions—a common requirement for pto tiller gearbox applications in Brazilian soybean and sugarcane regions. The exterior receives a powder-coat finish in agricultural green (RAL 6005) for rust prevention and easy identification of oil weep points during field inspection.
4. Five Key Advantages of the EP TB-19J Rotary Tiller Gearbox
1. Direct Comer TB-19J Replacement
The EP TB-19J is a verified drop-in alternative for the Comer Code TB-19J, matching all bolt pattern dimensions, shaft profiles, and gear ratios precisely. Operators in Brazil and other markets can swap components without machine modification, reducing downtime to minutes rather than days.
2. High Torque Output for Demanding Soils
Rated at 423 Nm output torque, this power tiller rotary gearbox handles clay-heavy soils and rocky terrain common to Brazil’s Mato Grosso and São Paulo agricultural belts. The generous torque margin prevents premature wear and slipping under load, which is critical for high-output row-crop preparation.
3. Sealed Oil-Bath Lubrication
The splash lubrication system with double-lip NBR oil seals keeps contaminants out while maintaining consistent gear oiling even during steep hillside operation. This eliminates grease nipple maintenance schedules that slow down seasonal operations and reduces the total cost of ownership for fleet operators.
4. Wide Tractor Compatibility
The standard 1″ 3/8 Z6 input spline connects directly to most category I and II tractor PTO shafts—including John Deere, Massey Ferguson, New Holland, and Valtra models popular in South American markets. This makes the EP TB-19J the best rotary tiller gearbox for tractor compatibility in its class.
5. Verified Manufacturing Quality Controls
Every unit passes dimensional inspection and load testing before dispatch. Gear mesh alignment, bearing clearance, and seal integrity are verified per ISO 9001:2015 production protocols. Third-party inspection from SGS or equivalent is available on request for large agricultural machinery procurement orders.
5. Application Scenarios
The EP TB-19J rotary tiller gearbox serves a broad range of agricultural and horticultural applications. Its robust torque capacity and compact dimensions make it adaptable across tractor sizes and field types, from small family farms to large-scale mechanized agribusiness operations.
Row-Crop Seedbed Preparation
In Brazil’s large soybean and corn belts, seedbed uniformity directly impacts germination rates. The precise speed control delivered by this gearbox rotary cultivator ensures consistent tine depth across wide working widths, even on previously compacted red laterite soils common in the Cerrado.
Sugarcane Ratoon Management
Sugarcane ratoon cultivation requires inter-row tilling without disturbing established cane stools. A high-torque tiller gearbox with smooth speed consistency prevents blade stalling in the dense organic matter typical of cane paddocks, making this unit well-suited for Brazil’s state of São Paulo sugar industry.
Orchard and Vineyard Floor Management
Compact vineyard and orchard tractors—common in Southern Brazil (Rio Grande do Sul), Argentina’s Mendoza, and EU wine regions—require small, lightweight rotary tiller gearbox parts that deliver full torque at low tractor engine speeds. This gearbox’s 540 rpm input standard aligns directly with such applications.
Market Garden and Smallholder Farming
For smallholder operators across Southeast Asia, Sub-Saharan Africa, and Brazil’s family farming sector (agricultura familiar), the TB-19J replacement offers cost-efficient rotary tiller gearbox for sale access at a fraction of OEM prices, without compromising on load-bearing performance or seal quality.
Municipal Greenspace and Sports Turf
Municipalities and sports turf contractors operating compact tractors for aeration and overseeding use rototiller gearbox assemblies regularly. The clean oil-bath seal design of the EP TB-19J prevents lubricant contamination of sensitive turf environments, meeting contractor procurement standards in the EU and North America.
6. Regulations and Compliance Considerations
Agricultural gearboxes and tractor-mounted implements are subject to varying regulatory frameworks across major markets. Buyers and distributors of rotary tiller gearbox for tractor systems should review the requirements relevant to their operating country before procurement.
Brazil (ABNT Standards and MAPA): Agricultural machinery and components operating in Brazil are subject to Brazilian Agricultural Research Corporation (Embrapa) field safety guidelines and MAPA (Ministério da Agricultura, Pecuária e Abastecimento) equipment homologation requirements. PTO-driven implements must comply with NR-12 (Norma Regulamentadora 12), which specifies safety standards for machinery and equipment, including protective guarding of rotating shafts and gearboxes. The ABNT NBR standards also govern noise emission from agricultural machinery.
European Union (CE Marking / Machinery Directive 2006/42/EC): All agricultural machinery sold within the EU must carry CE marking and comply with the Machinery Directive 2006/42/EC. This covers risk assessment, guard design, operator information, and residual risk documentation. PTO shafts and related gearbox systems must also meet EN ISO 4254-1 for general safety requirements of agricultural machinery.
United States and Canada (ASABE Standards / OSHA): The American Society of Agricultural and Biological Engineers (ASABE) publishes standards such as ASABE S318 for PTO shafts and related components. OSHA 29 CFR 1928.57 covers guarding of farm field equipment including rotary tillers. In Canada, provincial occupational health and safety legislation applies to farm equipment operation.
Argentina and Other MERCOSUR Countries: Within MERCOSUR, there is ongoing harmonization of agricultural machinery safety standards with Brazilian and international norms. Importers in Argentina must comply with SENASA (Servicio Nacional de Sanidad y Calidad Agroalimentaria) import requirements for agricultural equipment parts.
ISO International Standards: Internationally, ISO 11684 covers safety signs for agricultural equipment, and ISO 25119 governs functional safety aspects of tractor control systems. These are applicable to any market where rotary tiller gearbox replacement components are used in professionally operated machinery fleets.
7. About Us
We are a professional manufacturer and exporter of agricultural gearboxes and transmission components with over two decades of production experience. Our engineering team specializes in rotary tiller gearbox manufacturers solutions, serving distributors, OEM machinery builders, and after-market parts importers across Brazil, Europe, North America, Southeast Asia, and Sub-Saharan Africa.
Our production facilities operate under ISO 9001:2015 quality management certification, and our product portfolio spans the full range of agricultural transmission needs—from rotary tiller gearbox parts and complete assemblies to PTO shafts, sprockets, and drive chains. We pride ourselves on short lead times, accurate dimensional matching for replacement applications, and engineering support for non-standard configurations.
For procurement managers and agricultural machinery distributors in Brazil, our team can provide full technical documentation, third-party inspection arrangements, and container-load pricing. We understand the logistics realities of importing to Santos, Paranaguá, and other Brazilian ports, and our export packing meets moisture and impact protection requirements for long sea freight.
WorkShop
8. Related Products – Complete Agricultural Drivetrain Solutions
A high-performance rotary tiller gearbox delivers its full potential only when matched with properly rated drivetrain components. We supply the complete input-to-output chain: from tractor PTO through shaft to gearbox and tine shaft—ensuring mechanical compatibility, balanced load capacity, and a single-source supply advantage for fleet procurement managers.
PTO Drive Shafts
The PTO shaft is the mechanical bridge between your tractor’s output and the gearbox for tiller. Our shafts are available in multiple profiles—1-3/8″ Z6, 1-3/8″ Z21, and 1″ Z6—covering the full range of category I and II tractor applications. Cross and journal kits, friction clutch versions, and torque limiting variants are stocked for immediate dispatch. Visit our PTO Shaft product range for full specifications and configurations.
Drive Chains and Sprockets
For tillers that use secondary chain drive to transfer torque from the gearbox output shaft to the tine shaft, the quality of the drive chain and sprockets is equally important. Our agricultural-grade roller chains meet ISO 606 standards in simplex and duplex configurations, with case-hardened sprockets available in a broad range of tooth counts and bore sizes to match rotary tiller gearbox parts in common use. System compatibility is verified across the EP gearbox range before shipment.
Frequently Asked Questions
Q1. What is the correct rotary tiller gearbox replacement for the Comer TB-19J used on Brazilian tractors?
The EP TB-19J is a verified direct replacement for Comer Code TB-19J. It matches all critical dimensions including the 1″ 3/8 Z6 input spline, 30 mm output shaft, and the standard Comer 4-bolt flange pattern (M10, PCD 130 mm). No adapter plate or modification is required for most standard rotary tiller installations on tractors sold in the Brazilian market, including Massey Ferguson, New Holland, and Valtra models.
Q2. How does a rotary tiller gearbox transfer power from the tractor PTO to the tines?
The tractor PTO rotates at 540 rpm and drives the gearbox input shaft through a PTO shaft connection. Inside the gearbox, bevel gears redirect this rotation and apply the gear ratio (1.46 in this model) to increase output speed. The output shaft then drives the tine shaft directly or via a secondary chain drive, rotating the blades at the designed cutting speed for effective soil cultivation.
Q3. Which tractor models in Brazil are compatible with the EP rotary tiller gearbox for tractor replacement?
The EP TB-19J is compatible with any tractor equipped with a standard Category I or II 540 rpm PTO, which includes virtually all Massey Ferguson, New Holland, John Deere, Valtra, and Agrale models sold in Brazil with engine outputs between 30 and 80 hp. The 1″ 3/8 Z6 input shaft is the standard PTO spline across these platforms. Always verify the PTO torque rating matches or exceeds 16.9 kW before installation.
Q4. What are the main advantages and disadvantages of a rotary tiller gearbox compared to a belt-drive system?
Gearbox drives offer higher torque density, more compact installation, and longer service life under continuous load compared to belt drives. The EP TB-19J’s oil-bath lubrication eliminates external maintenance intervals entirely. The main trade-off is that gear drives cannot slip under overload the way belts can—which is why overload-protection PTO shafts with friction or shear-bolt clutches are recommended for use with this gearbox in rocky terrain environments.
Q5. What rotary tiller gearbox parts are most commonly needed for routine maintenance?
The most frequently replaced parts are shaft oil seals (NBR double-lip type), input and output bearings, and the breather plug/fill plug assembly. Gear sets themselves rarely require replacement if the oil level is maintained correctly and the gearbox is not operated under sustained overload. We supply individual spare parts as well as complete overhaul kits for the TB-19J specification.
