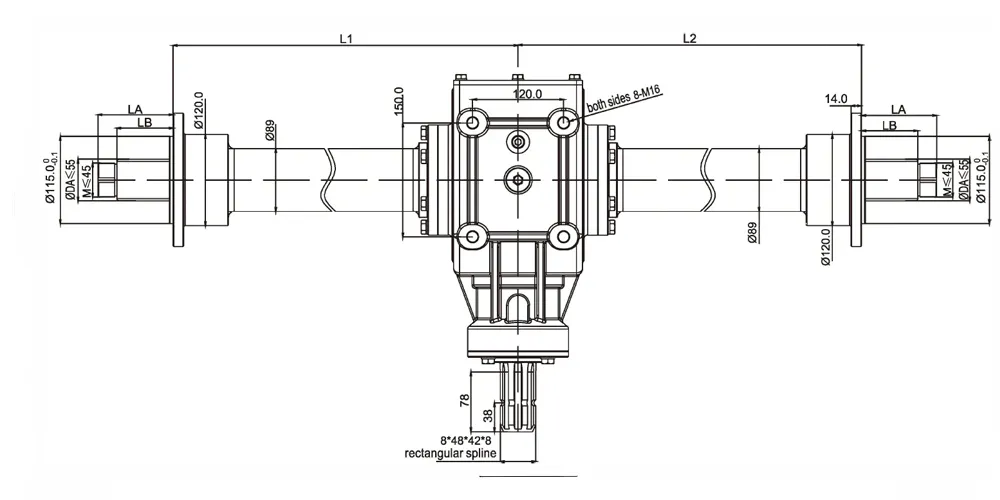

EP-EP250-YJ-Round Baler Gearbox for Round Baler and Harvester

✓ Gear Ratio: 1.92:1 deceleration — optimized for round baler roller and pickup systems operating at 282 RPM output.

✓ Power Handling: 80 HP (nominal) / 1800 HP (peak) capacity with 540 RPM standard PTO input compatibility.

✓ Toothing: Gleason helical gear teeth — reduced noise, improved load distribution, longer service life compared to straight-cut alternatives.

✓ Applications: Round balers, harvesters, crop cutting mechanisms, bale wrapping systems, and forage processing equipment.

✓ Custom Options Available: Non-standard ratios, shaft configurations, and flange patterns can be engineered upon request.

1. Gleason Helical Gear Precision

Unlike spur gear designs that generate high contact stress at a single point, the EP250-YJ uses Gleason helical toothing where multiple teeth engage simultaneously during rotation. This engineering approach distributes load across a wider surface area, reducing individual tooth stress by approximately 30 to 40 percent compared to straight-cut gears. For operators running round balers across large soybean and sugarcane farms in states like Mato Grosso do Sul or Parana, this translates directly into fewer mid-season breakdowns and lower maintenance frequency during critical harvest windows. The helical profile also dampens vibration and operational noise — a practical benefit during extended field hours that contributes to operator comfort and reduced fatigue over a full working day.

2. High Torque Capacity for Demanding Field Conditions

The EP250-YJ is rated for 80 HP nominal and can handle peak loads up to 1800 HP, giving operators a significant safety margin when processing dense or wet crop material. In Brazilian agriculture, where tropical rains can saturate hay and silage crops, the gearbox must handle increased resistance without slipping or overheating. This round baler gearbox type achieves that through hardened alloy steel internal components and precision-ground bearing seats that maintain alignment under heavy loads. The robust torque rating also makes the EP250-YJ suitable for harvester applications where cutting thick stalks and feeding heavy crop volumes through the processing chain demands sustained power delivery without interruption.

3. Sealed Lubrication System for Tropical Climates

Agricultural machinery operating in Brazil faces environmental challenges ranging from red laterite dust in Goias to high ambient humidity along the southern coast. The EP250-YJ incorporates multi-lip seals at all shaft entries and a sealed oil reservoir that prevents contamination from external particles while retaining lubricant under temperature swings from 5 degrees C in southern winter mornings to above 40 degrees C during peak summer in the Cerrado region. This closed lubrication circuit reduces the frequency of oil changes and protects bearing surfaces from premature erosion — a maintenance advantage that directly affects total cost of ownership for farms managing large fleets of round baler equipment across multiple growing seasons.

4. Drop-In Compatibility with Major Baler Platforms

The EP250-YJ round baler gearbox for tractor applications features standardized PTO input dimensions and flange bolt patterns that align with widely used baler models from John Deere, Case IH, and Krone. This cross-compatibility means operators do not need to modify mounting brackets or fabricate adapter plates when performing a round baler gearbox replacement on existing equipment. The input shaft accepts standard 1-3/8 inch 6-spline and 1-3/4 inch 20-spline PTO connections, covering the two most common tractor output configurations used in Brazilian agriculture. For those wondering how to use round baler gearbox units across multiple machines, this universal interface design simplifies fleet standardization.

5. Compliance with International Agricultural Safety Standards

Every EP250-YJ unit is manufactured under ISO 9001:2015 quality management protocols and designed to meet the essential health and safety requirements of both the EU Machinery Regulation (replacing Directive 2006/42/EC from January 2027) and Brazilian NR-12 (Norma Regulamentadora 12). NR-12 specifically mandates safety provisions for agricultural machinery used within Brazil, including requirements for proper guarding around PTO connections and mechanical transmission devices. For operators importing round baler gearbox equipment into Brazil, meeting NR-12 compliance is not optional — non-conforming machinery can be subject to immediate embargo by Ministry of Labor inspectors. The EP250-YJ is engineered with these regulatory obligations in mind, including provisions for safety shield attachment points around the PTO interface.

Round Baler — Hay, Straw, and Silage Processing

The primary application for the EP250-YJ is driving the internal roller system of round balers. As crop material is fed through the pickup reel and into the bale chamber, the gearbox transmits torque from the tractor PTO to rotate the compression rollers that form cylindrical bales. In Brazilian operations — particularly across the vast pasture lands of Mato Grosso and Minas Gerais where livestock farming depends on stored forage — this round baler gearbox equipment runs continuously for 8 to 12 hours per day during peak harvest season. The 1.92:1 reduction ratio delivers the slower, higher-torque rotation needed to compress progressively denser material as the bale approaches its full diameter, ensuring uniform density from core to surface.

Harvester — Crop Cutting and Threshing

In harvester configurations, the EP250-YJ powers cutting mechanisms and crop conveyor systems. The gearbox drives rotating blade assemblies or sickle bars that cut standing crops at the base, while simultaneously powering auger-based feeding systems that transport cut material to processing or baling stages. For sugarcane harvesters operating in Sao Paulo and Goias, where stalk density and fiber toughness place extreme demands on drivetrain components, the EP250-YJ peak torque capacity provides the reserve strength needed to push through sudden load spikes without stalling. This round baler gearbox for round baler and harvester dual-purpose capability reduces the number of spare gearbox types that fleet operators need to stock.

Bale Formation and Ejection Systems

Beyond driving the main compression rollers, the EP250-YJ also powers bale ejection mechanisms that release finished bales from the chamber. This involves driving a gate-opening actuator and, in some baler designs, a wrapping mechanism that applies net wrap or plastic film before ejection. The gearbox must deliver smooth, controlled power during the wrapping phase to prevent film tearing, then provide a brief surge of torque for the ejection stroke. Operators processing alfalfa or Tifton grass bales for the dairy industry in Parana value this controlled power delivery because it produces consistently shaped, tightly wrapped bales that resist moisture penetration during field storage.

Crop Feeding and Conveying

The gearbox output also drives feeding augers and conveyor systems that manage the flow of harvested material from the cutting head to the baling or processing chamber. Maintaining a steady, regulated crop feed rate is critical for producing bales of consistent density and shape. When feed rates fluctuate — due to uneven crop stands or operator speed changes — the EP250-YJ helical gear system absorbs the resulting torque variations more smoothly than spur gear alternatives, protecting downstream components from shock loads. For large-scale grain and forage operations in the Brazilian Cerrado, where a single tractor may pull equipment across fields exceeding 500 hectares, this load-smoothing characteristic contributes directly to equipment longevity and reduced downtime during harvest.

PTO-Driven Agricultural Implements

The EP250-YJ serves as a versatile PTO transmission hub for various tractor-mounted agricultural implements beyond dedicated balers and harvesters. Its standard 540 RPM input and robust output capacity make it suitable for driving rotary rakes, tedders, and forage choppers used in grass management operations. When asking how many HP does it take to pull a round baler, the answer typically ranges from 50 to 120 HP depending on baler size and crop conditions — the EP250-YJ 80 HP nominal rating positions it squarely in the mid-range of this requirement, with peak capacity to handle heavier loads during tough field conditions. This versatility makes the gearbox a valuable round baler gearbox kit component for agricultural machinery dealers serving diverse farming operations.

Brazil — NR-12 (Norma Regulamentadora 12)

NR-12 is the mandatory Brazilian regulation for machinery and equipment safety, issued by the Ministry of Labor. It establishes minimum requirements for preventing workplace accidents throughout a machine’s lifecycle — from design and manufacture through import, installation, operation, and maintenance. Annex XI of NR-12 specifically addresses agricultural and forestry machinery, requiring proper safety guards around PTO connections and mechanical transmission devices. Non-compliance carries severe penalties: Ministry of Labor inspectors can impose immediate equipment embargo (interdiction), with fines ranging from R$2,000 to R$200,000 per machine. The EP250-YJ includes machined mounting provisions for PTO guard attachment, enabling operators to meet NR-12 guarding requirements without aftermarket modification. For importers bringing round baler gearbox equipment into Brazilian territory, NR-12 conformity documentation must be prepared by a CREA-registered engineer with an ART (Anotacao de Responsabilidade Tecnica) backed report.

European Union — Machinery Regulation (EU) 2023/1230

The EU Machinery Regulation replaces Directive 2006/42/EC and applies from January 20, 2027. It mandates essential health and safety requirements for machinery placed on the European market, including agricultural transmission components. Under the new regulation, PTO drive shafts and their guards require validation by a notified body when placed independently on the market. The EP250-YJ is designed in accordance with CE marking principles, supporting manufacturers who integrate the gearbox into complete baler assemblies destined for EU member states. The gearbox design accounts for risk assessment requirements outlined in ISO 12100 (Safety of machinery — General principles for design) and incorporates features consistent with ISO 13849-1 safety integrity levels for control-related functions.

International Standards — ISO, AGMA, DIN

The EP250-YJ is manufactured under ISO 9001:2015 quality management systems. Gear accuracy follows DIN 3961/3962 Class 6 tolerances. Gear load rating calculations reference ISO 6336 (Calculation of load capacity of spur and helical gears) and AGMA 2001-D04 (Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth). These international standards provide the engineering framework that ensures gear tooth strength, surface durability, and bearing life calculations are based on globally recognized methodologies — giving procurement engineers confidence in the published specifications regardless of which national market the round baler gearbox is deployed in. For operations across Argentina, Uruguay, and Paraguay that also serve the Mercosur agricultural corridor, these standards provide a common technical language for cross-border equipment procurement.

United States — OSHA and ASABE Standards

In the United States, agricultural machinery safety falls under OSHA 29 CFR 1928 (Occupational Safety and Health Standards for Agriculture) and voluntary consensus standards published by ASABE (American Society of Agricultural and Biological Engineers). ASABE S493 covers guarding of agricultural PTO equipment, requiring shields and guards that contain moving parts during normal operation. The EP250-YJ output and input shaft configurations are dimensioned to accept standard North American PTO guard assemblies. For round baler gearbox manufacturers supplying North American OEMs, these compatibility features simplify the integration process and reduce the time required to bring new baler models through safety certification and into production.
