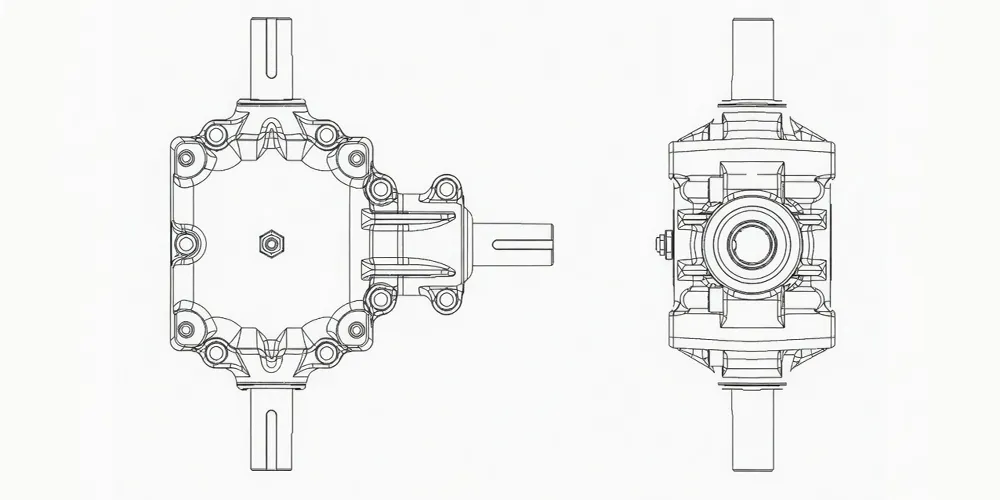

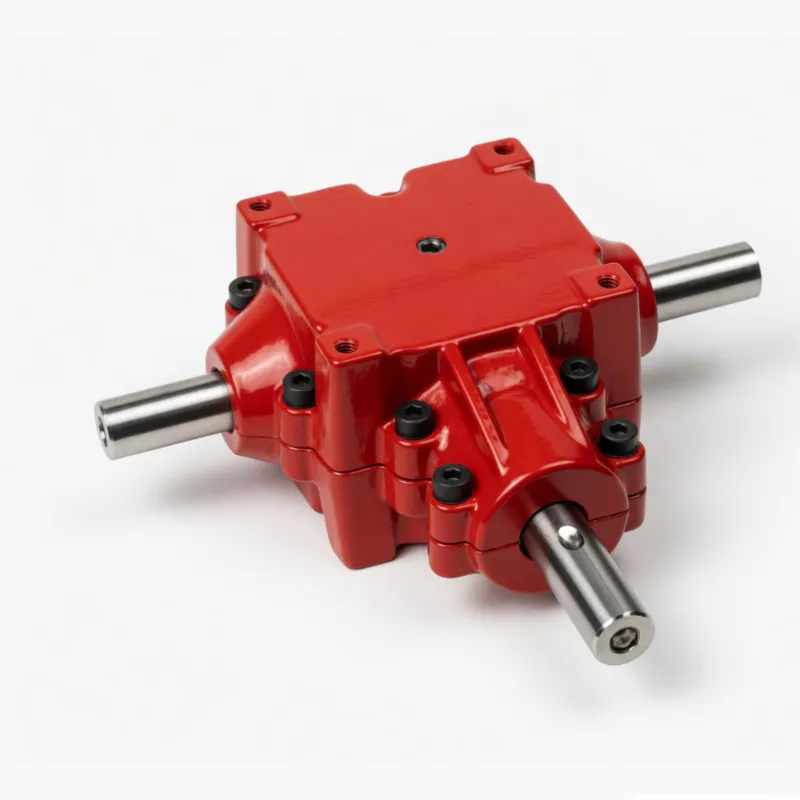

EP-200 Series Agricultural Machinery Gearbox

 EP-200 Series Gearbox for Agricultural Machinery

Compact right-angle bevel drive engineered for hay tedders, rotary rakes, and light-duty PTO implements across Brazil and wider Latin America.

2. What Is an Agricultural Machinery Gearbox?

So, what is an agricultural machinery gearbox, and why does the EP-200 matter specifically to Brazilian farms? It is a sealed mechanical power-transmission unit that redirects, reduces, or multiplies the rotational energy leaving a tractor’s PTO before it reaches the driven implement. On a hay tedder, the PTO delivers 540 or 1000 RPM along the longitudinal axis of the tractor; this PTO agricultural machinery gearbox turns the motion through 90 degrees so that the tedder rotors — mounted vertically beneath the frame — can throw and aerate cut grass uniformly across the windrow. Without a correctly sized right-angle bevel agricultural gearbox, no modern rotary implement could function safely or hold torque under the shock loads typical of dry hay fields in Goiás or muddy pastures in Santa Catarina. The EP-200 belongs to the small-to-mid-duty class of right-angle bevel drives intended for the 15–55 kW input range, which covers practically all pull-behind hay tools and many light-to-medium tillers used by family-scale and mid-scale Brazilian growers.

3. Five Key Advantages of the EP-200 Series

4. EP-200 Agricultural Machinery Gearbox Working Principle

The agricultural machinery gearbox working principle behind the EP-200 is straightforward in concept, yet the in-service behaviour depends on precision engineering that many buyers underestimate. Rotational energy leaves the tractor at 540 RPM or 1000 RPM along the horizontal input shaft. Inside the sealed aluminum housing, the input shaft drives the bevel pinion, which meshes at ninety degrees with a crown gear fixed to the vertical output shaft. Because the axes of pinion and crown intersect at a right angle, the direction of rotation is redirected from horizontal to vertical — precisely what the rotor shaft of a hay tedder needs to spread a cut swath evenly across a paddock in Rio Grande do Sul or Minas Gerais. The chosen ratio (1:1, 1.5:1, 2:1, or 1:1.5) decides whether the unit holds, reduces, or multiplies output RPM, and inversely scales the output torque. Tapered roller bearings at each shaft end absorb the combined radial and axial loads born by the mesh. Meanwhile, 80W-90 oil splashes the gear mesh and carries away heat. Double-lip seals retain the lubricant and exclude crop debris, dust, and rainwater, so agricultural machinery gearbox operation remains reliable across thousands of field hours.

5. Materials and Construction

Every structural element of the EP-200 is selected for the combined demands of Brazilian agriculture — high humidity, variable fuel quality, long seasons, and operators who cannot afford downtime mid-harvest. The split housing is die-cast from an aluminum alloy (comparable to ADC12) that balances light weight, thermal conductivity for passive cooling, and resistance to the salty coastal air of states like Bahia or Espírito Santo. The bevel gear pair is forged from case-hardened 20CrMnTi alloy steel, ground after heat treatment to deliver quiet running and predictable wear. The input and output shafts are machined from 40Cr tempered alloy steel, with rolled keyways and hardened splines that resist fretting where the PTO yoke couples. Tapered roller bearings use chrome-bearing steel races and cages rated for continuous agricultural duty. Rotary shaft seals combine a nitrile primary lip with a fluoroelastomer auxiliary lip, maintaining oil retention when chassis temperatures climb during afternoon tedding. Fasteners are Grade 8.8 or higher, zinc-plated, and torqued to assembly specification. These agricultural machinery gearbox parts are traceable by batch — essential data when a fleet owner files a warranty claim for review.

6. Agricultural Machinery Gearbox Applications

The EP-200 is deliberately configured for multi-implement deployment. Below are the primary agricultural machinery gearbox application scenarios where this right-angle bevel agricultural gearbox is routinely specified by Brazilian OEMs and imported by cooperative distributors.

7. Installation and Operation Guidance

Correct agricultural machinery gearbox installation is the single largest determinant of long-term reliability. Before fitting the EP-200, confirm that the implement frame mounting face is flat and free of paint build-up, that the PTO yoke alignment does not exceed the manufacturer’s recommended angle at full articulation, and that the cross-shafts clear each surrounding structural member at every operating position. Hand-rotate the input shaft one full revolution to confirm smooth engagement and zero axial drag before bolt-up. Torque all mounting fasteners to the specified value in a star pattern. After initial assembly, spin the driveline by hand, then at idle with no load, verifying that no lubricant weeps from seal faces or the split line. During the first fifty hours of agricultural machinery gearbox operation, a short run-in at reduced load is good practice: this allows bearings to settle, gear contact patches to develop, and operators to listen for anomalies. Inspect oil level weekly during peak harvest. Replace the 80W-90 fill after the first season, and annually thereafter, or sooner if the oil shows milky contamination from water ingress following river-bank or irrigation-channel work.

8. Compliance and Regional Regulations

When sourcing an agricultural machinery gearbox in Brazil, buyers and OEMs should be aware of the regulatory framework that governs importation, safety marking, and on-farm use. The principal reference in Brazil is NR-12 (Norma Regulamentadora 12), which covers safety in the use of machinery and equipment — particularly the requirement for integral shielding of rotating parts and PTO couplings. Agricultural implements integrating the EP-200 typically need to comply with the relevant clauses of NR-12 in the finished-product assembly. The INMETRO (Instituto Nacional de Metrologia, Qualidade e Tecnologia) may be relevant when the completed implement falls under a conformity-assessment programme. The Ministry of Agriculture (MAPA) and IBAMA also publish guidance relevant to agricultural equipment. On the voluntary standards side, ABNT NBR ISO 4254-1 mirrors the ISO 4254 agricultural machinery safety series, providing harmonised design principles for guards, starting devices, and warning signage.

For export projects, our EP-200 agricultural machinery gearbox manufacturers align with the European Machinery Directive 2006/42/EC (CE marking, harmonised with EN ISO 4254 series) when supplying EU OEMs; with ANSI/ASABE implement safety standards and OSHA workplace guidance for North American buyers; with AS/NZS 4024 machinery safety standards for Australia and New Zealand; with CSA standards for Canada; and with IRAM series and SAGyP guidance for Argentine importers. Buyers commissioning a custom agricultural machinery gearbox design should state the destination market at the quotation stage so that compliance documentation can be assembled alongside the order. For every bulk agricultural machinery gearbox quotation we issue, a destination-specific compliance matrix accompanies the commercial offer.

9. About Us

We are a dedicated production facility specialising in gearboxes for agricultural machinery, with more than two decades of continuous manufacturing experience in right-angle bevel drives for hay equipment, tillage tools, and rotary implements. Our plant holds ISO 9001:2015 quality-system certification and operates under an internal inspection regime that covers incoming raw material chemistry, gear-cutting accuracy, heat-treatment hardness profiling, bearing pre-load verification, and 100% leak testing of every assembled unit. Our engineering team supports OEM integration worldwide, and we regularly receive customer audits from buyers in Brazil, Argentina, Chile, the United States, and across the European Union. Export-experienced sales engineers speak Portuguese, Spanish, and English, and our export packing is configured for the long sea routes to the Port of Santos, Paranaguá, and Buenos Aires. Beyond supply of the EP-200, we operate a full workshop capable of building a complete agricultural machinery gearbox kit that bundles the gearbox with the matching PTO shaft, safety chain, and implement-specific mounting adapters — a true one-stop solution for serial-production hay tool manufacturers.

Workshop

10. Related Products and Complete Drive Line

Beyond the EP-200 itself, we produce the matching transmission accessories that complete a tractor-to-implement drive chain. Choosing parts from a single supplier guarantees geometric fit, matched torque ratings, and a coherent warranty — and it avoids the coordination cost of sourcing each component from a different vendor. Our full-range agricultural machinery gearbox for sale programme is supported by a one-stop engineering service that can review the entire drive line before first article sign-off.

PTO Shafts

Telescoping PTO shafts with integral safety guards, overrun clutches, and friction shear protection, matched dimensionally to the EP-200 input spline. A correctly specified PTO agricultural machinery gearbox drive line keeps torque transfer smooth from tractor to tedder.

Sprockets and Drive Components

Precision-machined sprockets and secondary drive components engineered to partner with the EP-200 and our wider catalogue. Whether you need a chain-driven tedder rotor sub-assembly or a replacement sprocket for an aftermarket rebuild, our system-level approach keeps the gearbox, the PTO shaft, and the secondary drive working in harmony.
