Description

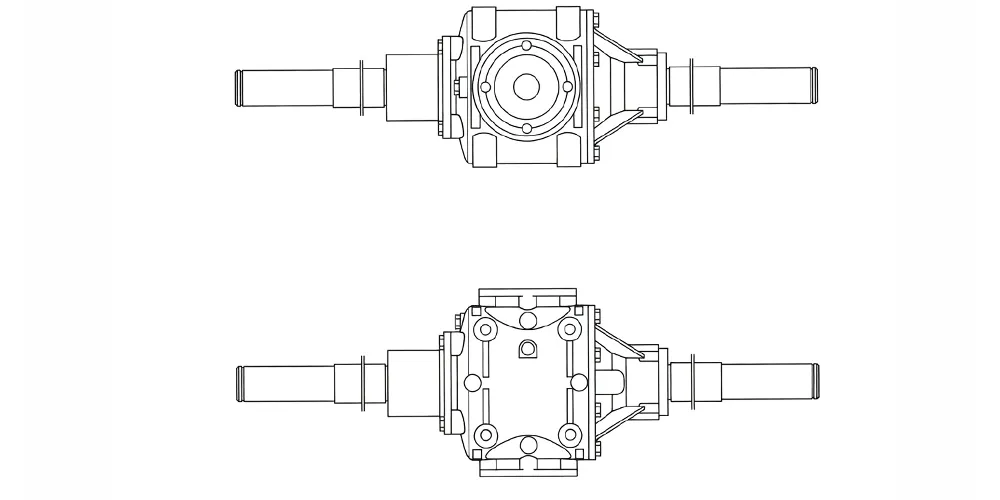

EP-T292E Round Baler Gearbox
Replacement of Comer Code T-292E | Engineered for High-Torque Baling Operations
PTO-Driven Agricultural Gearbox for Round Baler Equipment
1. Technical Specifications & Performance Parameters
The following table presents 20 verified technical parameters for the EP-T292E Round Baler Gearbox comparison reference. These specifications reflect tested values under standard operating conditions and serve as a baseline for evaluating what is the difference between baler drive models available on the market. When selecting a replacement gearbox for your specific application, cross-reference these parameters against your tractor’s PTO output and your baler manufacturer’s requirements.
| Parameter | Value |
|---|---|
| Model | EP-T292E |
| Replacement Code | Comer Code T-292E |
| Gear Ratio (i) | 1:1.86 |
| Input Speed (N1) | 540 rpm |
| Rated Input Power (P1) | 47.7 kW (approx. 64 HP) |
| Output Speed (Approx.) | 290 rpm |
| Input Shaft (X) | 1-3/8″ Z6 Spline |
| Secondary Shaft (Y) | 1-3/8″ Z6 Spline |
| Output Shaft (Z) | L200 Φ55 mm |
| Power Input Direction | Shaft X |
| Gear Type | Helical Bevel |
| Gear Hardness | HRC 58-62 (Carburized) |
| Housing Material | Ductile Cast Iron (QT500-7) |
| Seal Type | Double-Lip NBR Oil Seal |
| Bearing Type | Tapered Roller Bearing |
| Lubrication | SAE 90 EP Gear Oil, Splash System |
| Oil Capacity | 1.2 L |
| Overall Dimensions (L × W × H) | 320 mm × 260 mm × 245 mm |
| Net Weight | 28.5 kg |
| Operating Temperature Range | -20°C to +80°C |
2. Round Baler Gearbox – Replacement of Comer Code T-292E
The EP-T292E round baler gearbox is a precision-engineered mechanical transmission unit built to deliver consistent torque and reliable speed conversion during demanding baling cycles. Designed as a direct replacement for the Comer Code T-292E, this gearbox connects seamlessly to standard tractor PTO systems operating at 540 rpm input speed. It transfers rotational energy through a carefully calibrated gear train — with a ratio of 1:1.86 — to drive the compaction rollers, pickup mechanisms, and belt systems inside the baler chamber. This gearbox model stands out for its robust housing, hardened tooth surfaces, and precision-ground gear profiles that ensure minimal backlash and quiet operation even under peak load.
Understanding how does a round baler work begins with the gearbox itself. When the operator engages the PTO, mechanical energy flows from the tractor engine through the PTO shaft and into the gearbox input — in this case, a 1-3/8 inch Z6 spline shaft designated as Shaft X. Inside the housing, the helical gear set multiplies torque while stepping down rotational speed by a factor of 1.86. The modified output exits through Shaft Z (L200, diameter 55 mm), which connects to the baler drive system. This arrangement delivers up to 47.7 kW of continuous power, enabling the baler to compress crop material into dense cylindrical bales without stalling or overheating.
3. Five Key Advantages of the EP-T292E Round Baler Gearbox
1. Direct Comer T-292E Replacement — Zero Modification Needed
The EP-T292E round baler gearbox replacement drops directly into existing mounting positions without any frame modification, bracket re-drilling, or shaft adapter. Input and output shaft dimensions, spline counts, and bolt patterns match the original Comer specification exactly. This saves hours of installation labor and eliminates the risk of misalignment that plagues generic aftermarket alternatives. Farms that have used the Comer code system for years can transition to this replacement with full confidence that every interface point is dimensionally identical.
2. Hardened Gear Teeth for Extended Service Life
Every gear in this gearbox kit undergoes carburizing and quenching to achieve surface hardness above HRC 58. This treatment creates a wear-resistant outer layer while retaining a tough, ductile core that absorbs shock loads from uneven crop feeding. The result is a gearbox that can run through multiple baling seasons — often exceeding 3,000 operating hours — before requiring gear inspection. For operations that produce thousands of bales annually, this durability translates directly into lower cost per bale and fewer unplanned stops during peak harvest windows.
3. High Torque Capacity at 47.7 kW Rated Power
With an input power rating of 47.7 kW at 540 rpm PTO speed, this baler drive unit for tractor applications handles even the most challenging baling conditions — dense alfalfa, wet silage, or heavy straw residue. The 1.86 gear ratio amplifies torque substantially at the output shaft, giving the baler’s compression rollers the force they need to create compact bales with consistent density throughout. This is particularly important for large-scale livestock operations in Brazil’s southern states where feed quality depends on tight, well-formed bales that resist moisture penetration during storage.
4. Sealed Housing for Dust and Moisture Resistance
Agricultural environments expose equipment to clouds of dust, chaff, humidity, and occasional rain. The EP-T292E round baler gearbox features precision-machined sealing surfaces with double-lip oil seals at each shaft penetration point, preventing contaminant ingress and retaining lubricant under all operating conditions. This sealed design is critical for transmission parts longevity in tropical and subtropical climates common across Brazilian farmland, where high humidity and temperature swings accelerate corrosion in poorly sealed components.
5. Versatile PTO Compatibility with Standard Spline Interfaces
Both input and secondary output shafts use the internationally standard 1-3/8 inch Z6 spline profile, ensuring compatibility with virtually every tractor PTO shaft on the market. This makes the EP-T292E round baler gearbox best suited for mixed-fleet operations where different tractor brands must interface with the same baler. No proprietary adapters, no special couplings — it simply connects and runs. For dealers and distributors stocking baler drive equipment, this universal compatibility simplifies inventory management and broadens the addressable customer base.
4. Round Baler Gearbox Working Principle
The working principle of this transmission centers on converting high-speed, lower-torque PTO rotation into the slower, higher-torque output that the baler’s internal mechanisms demand. When the tractor operator engages the PTO clutch, the engine transmits rotational power at 540 rpm through the PTO driveline and into the gearbox input shaft (Shaft X). Inside the cast-iron housing, a set of precision-cut helical gears mesh together to achieve the 1:1.86 speed reduction ratio. The helical tooth geometry ensures gradual engagement between mating teeth, producing smoother power transfer and significantly less noise and vibration compared to straight-cut spur gear alternatives. As torque is amplified by the gear ratio, the output shaft (Shaft Z) rotates at approximately 290 rpm while delivering substantially greater turning force to the baler’s roller assembly, chain drive, or belt system. This torque multiplication is what enables the round baler to pull loose crop material off the ground through the pickup tines, feed it into the baling chamber, and compress it into a tightly wrapped cylindrical bale — all in a single continuous operation. Understanding how to use round baler gearbox equipment properly involves maintaining correct PTO speed, checking oil levels regularly, and ensuring the input shaft spline is fully seated before engaging the drive.
How many HP does it take to pull a round baler? For this particular gearbox configuration, the 47.7 kW rating translates to approximately 64 horsepower at the PTO. In practice, the tractor should have at least 70 to 85 engine horsepower to account for drivetrain losses, hydraulic system demands, and the additional power needed to propel the tractor and baler through the field. This puts the EP-T292E round baler gearbox squarely in the range of mid-size utility tractors commonly used across Brazilian fazendas for hay and silage production. The automatic transmission of power from the tractor engine to the baler internals occurs without operator intervention once the PTO is engaged — the gear train handles load variations automatically as crop density changes across the windrow, making the baling process straightforward even for less experienced operators.
5. Material Composition & Build Quality
Every material selection in the EP-T292E round baler gearbox reflects a deliberate engineering choice aimed at maximizing durability in harsh agricultural conditions. The gear teeth are machined from 20CrMnTi alloy steel — a grade widely recognized in the gear manufacturing industry for its excellent carburizing properties and impact toughness. After machining, the gears undergo a controlled carburizing process at approximately 920 degrees Celsius, followed by oil quenching and low-temperature tempering. This produces a case depth of 0.8 to 1.2 millimeters with hardness exceeding HRC 58 on the tooth surface, while the core retains enough ductility to absorb sudden shock loads that occur when the baler encounters a dense clump of crop material or a foreign object in the windrow. The round gearbox housing is cast from QT500-7 ductile iron, which provides far superior tensile strength and fatigue resistance compared to grey cast iron alternatives. This material withstands the vibration, thermal cycling, and mounting stresses that a baler transmission unit experiences throughout its service life without cracking or deforming. Shaft components are turned from 42CrMo alloy steel with induction-hardened bearing seats for wear resistance. Seals are made from oil-resistant NBR (nitrile butadiene rubber) rated for continuous operation up to 100 degrees Celsius. Bearings are sourced as tapered roller types with cages and races conforming to ISO 492 dimensional tolerance standards, ensuring long fatigue life under combined axial and radial loads.
6. Regulatory Compliance & International Standards
Agricultural machinery sold and operated in Brazil must comply with NR-12 (Norma Regulamentadora 12), the country’s mandatory regulation for machinery and equipment safety established by the Ministry of Labor. NR-12 covers the entire lifecycle of agricultural equipment — from design and manufacture through installation, operation, maintenance, and disposal. For round baler gearbox manufacturers supplying the Brazilian market, this means the gearbox housing must incorporate proper guarding provisions, rotating shaft ends must be designed to accept protective covers, and all documentation including installation manuals and maintenance guides must be provided in Brazilian Portuguese with clear safety warnings and operational diagrams. Annex XI of NR-12 specifically addresses agricultural and forestry machinery, requiring compliance with ABNT (Brazilian Association of Technical Standards) and ISO standards for guarding, hydraulic connections, color coding, and hot surface marking.
Beyond Brazil, the EP-T292E round baler gearbox also aligns with the European Union Machinery Directive 2006/42/EC, which mandates CE marking for mechanical equipment sold in EU member states. The directive requires manufacturers to perform risk assessments, maintain technical files, and ensure that all moving parts are guarded or enclosed to prevent operator injury. In the United States, OSHA regulations under 29 CFR 1910 Subpart O set baseline requirements for machine guarding, while ASABE (American Society of Agricultural and Biological Engineers) standards S493 and S318 define safety requirements specifically for PTO-driven equipment and guarding of farm machinery components. Australia’s Work Health and Safety (WHS) regulations similarly require risk assessments and safety guarding for PTO-driven agricultural implements. By designing the EP-T292E to meet or exceed these overlapping international requirements, we ensure that farmers and distributors worldwide can deploy this gearbox with confidence in its compliance status.
7. Application Scenarios
Hay Production for Livestock Feed
The most common application for this gearbox is driving balers that produce hay bales for cattle, horses, goats, and sheep. In Brazil’s major livestock regions — Rio Grande do Sul, Parana, Mato Grosso do Sul — farmers rely on round balers equipped with dependable gearboxes to harvest and store winter feed. The EP-T292E round baler gearbox delivers the torque consistency needed to produce uniformly dense bales that shed water, resist mold, and store safely for months without losing nutritional value.
Silage Wrapping Operations
For dairy operations producing wrapped silage bales, the gearbox must handle higher-moisture crop material that places greater mechanical stress on the drive system. The EP-T292E round baler gearbox’s high torque capacity and sealed housing make it well-suited for silage baling where wet, heavy material creates significant resistance in the baling chamber. Consistent gearbox performance means consistent bale density, which is critical for proper fermentation and feed quality in silage production.
Straw and Crop Residue Management
After grain harvest, baling straw and crop residue serves dual purposes: clearing the field for the next planting cycle and producing bedding material or additional feed. The EP-T292E round baler gearbox handles the dry, abrasive nature of straw — which generates fine dust particles that can infiltrate poorly sealed components — without compromising oil integrity or bearing life. This application is especially relevant for sugarcane straw collection in Brazil’s Sao Paulo and Goias states.
Contract Baling Services
Professional baling contractors who serve multiple farms require gearbox equipment that can withstand continuous, heavy-duty use across long workdays and diverse crop types. The EP-T292E round baler gearbox’s hardened gears and robust bearing arrangement are designed for exactly this kind of sustained, commercial operation where downtime directly impacts revenue. Contractors working across multiple Brazilian states value the universal PTO compatibility that allows the baler to interface with whichever tractor is available on each client’s property.
8. About Us
With decades of dedicated experience in agricultural transmission engineering, our manufacturing facility has grown from a small workshop into a modern production center equipped with CNC gear hobbing machines, gear grinding centers, coordinate measuring machines (CMM), and controlled-atmosphere heat treatment furnaces. Our engineering team includes specialists who have spent their careers focused exclusively on agricultural gearbox design — from flail mower gearboxes and rotary cutter drives to the baler transmission line represented by the EP-T292E round baler gearbox. We hold ISO 9001:2015 quality management certification and maintain rigorous incoming material inspection, in-process checks, and final assembly testing protocols. Every gearbox that leaves our facility undergoes a loaded run-in test to verify gear mesh quality, seal integrity, bearing preload, and noise levels before packaging.
WorkShop
9. Related Products — Complete Drive System Solutions
Beyond the gearbox itself, we produce a full range of complementary transmission components designed to work as an integrated system. Our PTO shafts and motors are engineered for seamless compatibility with our gearbox line, providing a one-stop supply advantage that simplifies procurement, ensures dimensional and performance compatibility between components, and reduces the risk of interface mismatches that can cause premature wear or failure. When your entire drive train — from PTO shaft through gearbox to final output — comes from a single engineering team, you eliminate the guesswork of mixing and matching components from different suppliers.
Our agricultural PTO shafts are manufactured with precision-forged yokes, hardened cross journals, and shielded safety guards that meet international PTO guarding standards. Available in standard 540 rpm and 1000 rpm configurations with various length options and shear bolt protection, these shafts connect your tractor to the EP-T292E round baler gearbox with reliable, safe power transmission. Each shaft is dynamically balanced to minimize vibration at operating speed.
Agricultural Drive Chain & Sprockets
For balers that use chain-driven roller systems downstream of the gearbox, we supply heavy-duty agricultural roller chains and precision-machined sprockets designed to handle the high-torque, low-speed output of the gearbox output. Our chains feature shot-peened plates for fatigue resistance and pre-stretched links that maintain accurate pitch over thousands of baling cycles. Matched sprocket sets ensure even tooth loading and smooth chain articulation throughout the drive.
Frequently Asked Questions
Q1: Does this gearbox work with both belt-type and chain-type baler drive systems?
Yes. The output shaft (Shaft Z) provides a standard cylindrical interface that connects to either belt pulleys or chain sprockets depending on your baler’s specific drive configuration. The 55 mm diameter and 200 mm length of the output shaft accommodate a wide range of coupling methods, including keyway, spline, or set-screw connections. This versatility makes the EP-T292E round baler gearbox compatible with most baler drive architectures currently in use across agricultural equipment from various manufacturers.
Q2: What type of tractor PTO speed does this gearbox require for proper operation?
The EP-T292E round baler gearbox is designed for standard 540 rpm PTO input speed, which is the most common PTO specification on mid-range agricultural tractors worldwide. Before engaging the PTO, verify that your tractor is set to 540 rpm mode — some modern tractors offer both 540 and 1000 rpm options. Running this gearbox at 1000 rpm PTO speed without an appropriate speed-reducing adapter would exceed design parameters and void the warranty.
Q3: Which maintenance steps should I follow to prevent gearbox failure during peak harvest season?
Before each baling season, drain and replace the gear oil, inspect the input and output shaft seals for any signs of leakage, check the mounting bolts for proper torque, and verify that there is no abnormal play in the bearings by gently rocking each shaft by hand. During operation, monitor oil temperature by touching the housing (it should be warm but not too hot to hold your hand on), listen for any unusual grinding or whining noises, and check the oil level every 50 hours. These preventive steps dramatically reduce the risk of mid-season breakdowns.
Q4: Which gearbox replacement fits a John Deere round baler using Comer drives?
The EP-T292E round baler gearbox is a direct-fit replacement for any round baler that originally used the Comer Code T-292E gearbox, regardless of baler brand. Many John Deere round baler gearbox assemblies, as well as units from other major OEMs, use Comer-coded gearboxes as original equipment. The input shaft, output shaft, and mounting bolt pattern are dimensionally identical to the original Comer unit, ensuring a seamless swap without any modification.
Q5: How many horsepower does a tractor need to run a baler with this gearbox efficiently?
The EP-T292E round baler gearbox is rated for 47.7 kW (approximately 64 HP) at the PTO. Accounting for drivetrain losses and the tractor’s own hydraulic and cooling system demands, we recommend a tractor with at least 70 to 85 engine horsepower for reliable, full-capacity baling. Operating with less horsepower is possible for lighter crops, but the tractor may struggle in dense material or uphill conditions.
