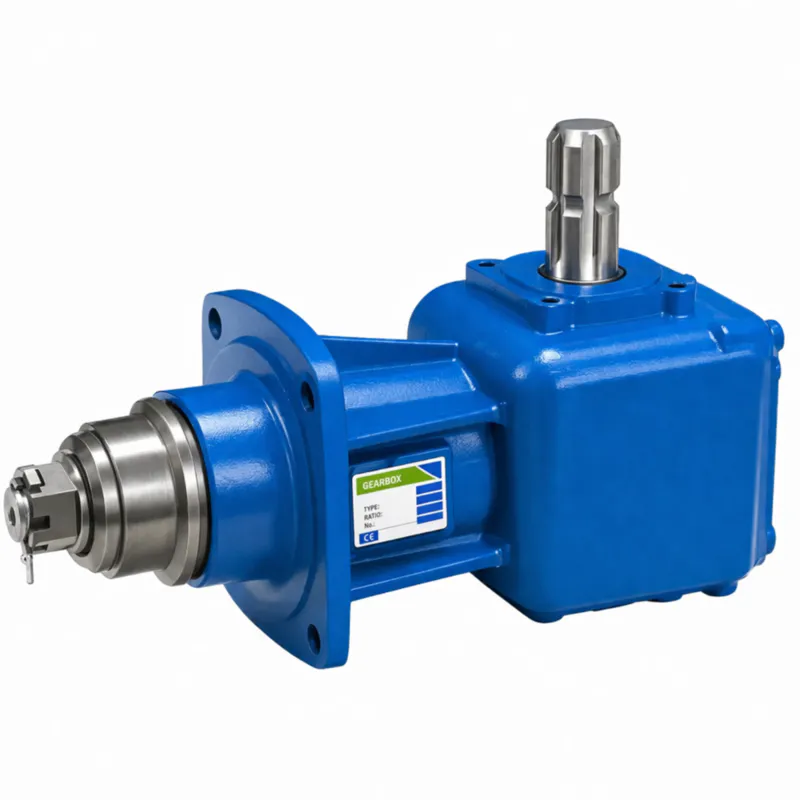

Agricultural Lawn mower Gearbox EP-LF205
A precision-engineered lawn mower gearbox rated at 30 HP / 540 RPM — built for rotary cutter and finishing mower applications across agricultural operations worldwide, including the demanding tropical conditions found throughout Brazil and South America.
1. Technical Parameters — EP-LF205 Lawn Mower Gearbox
The following table lists 20 key technical and performance parameters for the EP-LF205 lawnmower drive gearbox. These specifications are drawn from design documentation and apply to standard production units. Always confirm specific tolerances and mounting dimensions against your particular mower deck drawings prior to ordering.
| Parameter | Value / Specification |
|---|---|
| Model Number | EP-LF205 |
| Gear Ratio — Option A | 1 : 1.93 |
| Gear Ratio — Option B | 1 : 1.46 |
| Gear Teeth — Option A (Drive / Driven) | 23 / 12 |
| Gear Teeth — Option B (Drive / Driven) | 22 / 15 |
| Gear Module | 5.0 |
| Rated Power | 30 HP (approx. 22.4 kW) |
| Rated Input Speed | 540 RPM |
| Maximum Input Speed | 1,000 RPM |
| Input Shaft Specification | 1-3/8″ Z6 Spline (Optic Axis) |
| Output Shaft Specification | 12-Spline Taper (Bushing Required Separately) |
| Replacement Bushing Part No. | A-U920580500 / U0135700000 |
| Mounting Bolt Pattern (PCD) | 171.5 mm |
| Rotation Direction | CCW (Counterclockwise) |
| Net Weight | 19 kg |
| Housing Material | Cast Iron HT250 |
| Gear Material | 20CrMnTi Carburized Alloy Steel |
| Recommended Lubricant | EP90 Gear Oil |
| Operating Temperature Range | -20°C to +60°C |
| Overall Dimensions (L × W × H) | Approx. 285 × 225 × 215 mm |
2. Five Key Product Advantages of the EP-LF205 lawn mower gearbox
1. Dual Gear Ratio Versatility
With selectable ratios of 1:1.93 and 1:1.46, this lawn mower gearbox allows operators to fine-tune output speed and torque for different blade configurations and crop conditions. Whether you need high blade tip speed for clean cuts in established pasture or a lower-ratio torque advantage in dense vegetation, this flexibility sets the EP-LF205 apart from fixed-ratio competitors.
2. High Power Capacity at Standard PTO Speed
Rated at 30 HP input at the universal 540 RPM PTO standard, the EP-LF205 agricultural lawnmower gearbox handles continuous heavy-load mowing without thermal stress. The gear geometry and housing volume are optimized to dissipate heat efficiently, maintaining stable operation through long shifts across open Brazilian farmland in high ambient temperatures.
3. Low-Noise Precision Gear Machining
Each gear set is machined to tight dimensional tolerances and undergoes individual inspection before assembly. The result is a lawnmower drive gearbox that runs quieter than many comparable units at equivalent input speeds, reducing operator fatigue during sustained field work and signaling proper meshing alignment that extends service intervals.
4. Direct Comer Cross-Reference Compatibility
Procurement teams and field mechanics can quickly verify fit using established Comer cross-reference numbers including U9.135.808.10 and U9.205.808.00. This direct compatibility simplifies the lawn mower gearbox replacement process on existing Comer LF-205-J finishing mower fleets, eliminating costly downtime associated with sourcing non-standard or custom-fit alternatives.
5. Robust Cast Iron Housing for Field Durability
The HT250 cast iron housing delivers genuine impact resistance and dimensional stability, critical for a ride on lawnmower gearbox subjected to vibration, accidental stone strikes, and the mechanical shock loads inherent in rotary mowing of rough terrain. A durable housing also preserves oil seal integrity over extended service periods, reducing lubricant loss and associated gear wear.
3. How the EP-LF205 Lawn Mower Gearbox Works

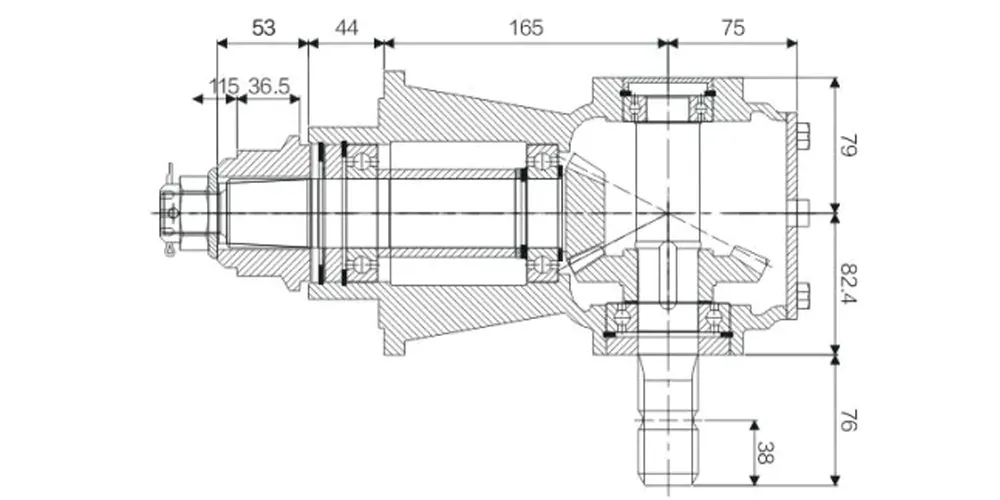

At its core, the EP-LF205 is a right angle gearbox for lawn mower applications — meaning it converts the horizontal rotational input from a tractor’s PTO shaft into a vertical or near-vertical output rotation that drives the cutting blade assembly below the mower deck. This 90-degree power transfer is achieved through a pair of precisely matched bevel gears enclosed within the cast iron housing, sealed against dust and moisture ingress by lip-seal arrangements on both input and output shafts.
When the tractor engages the PTO at the standard 540 RPM operating speed, the 1-3/8-inch 6-spline input shaft begins to rotate. This motion is transmitted through the drive bevel gear — machined from 20CrMnTi alloy steel and carburized to achieve a hard, wear-resistant tooth surface — directly to the driven bevel gear on the output shaft. Depending on the selected ratio (1:1.93 or 1:1.46), the output shaft turns at a correspondingly higher speed than the input, increasing the blade tip velocity necessary for effective cutting. The 12-spline taper output shaft couples to the blade hub via the separately supplied bushing, which seats firmly under operating torque to prevent any rotational slippage between the shaft and the hub during impact loads from debris strikes.
Lubrication is maintained by a bath of EP90 gear oil retained within the sealed housing. The gear oil forms a continuous film over the bevel gear tooth faces during rotation, preventing metal-to-metal contact and carrying away frictional heat.Regular oil changes, performed according to the maintenance schedule, are essential to sustaining the EP-LF205 lawn mower gearbox’s service life and avoiding premature failure that might necessitate a lawn mower gearbox replacement far ahead of schedule.
4. Materials and Construction Quality
The housing is cast from HT250 gray cast iron — a grade well suited to this application for several reasons. Its high damping capacity absorbs vibration energy that would otherwise transmit through the gearbox mounting bolts and into the mower deck frame, reducing structural fatigue. Its machinability allows the mounting faces and bearing bores to be finished to close tolerances, ensuring proper gear alignment and preventing premature bearing wear. The cast geometry also naturally protects the internal gear set from the rocks, soil clods, and dense vegetation encountered in agricultural mowing environments.
The gear set — both drive and driven bevel gears — is forged and machined from 20CrMnTi alloy steel. This material is widely used in agricultural and industrial gearing because of its favorable combination of core toughness and surface hardness after carburizing heat treatment. The carburizing process introduces carbon into the outer few tenths of a millimeter of the tooth surfaces, creating a hardened shell with a Rockwell hardness in the HRC 58–62 range, while the interior of the gear body remains comparatively ductile. This means the tooth surface resists pitting and wear under repeated contact stress, while the tooth root retains enough flexibility to absorb shock loads without brittle fracture — particularly important in a lawn mower gearbox that encounters sudden impacts from hidden rocks or dense root clumps during field operation in Brazil’s cerrado and Atlantic Forest transition zones.
Shaft materials are selected for their strength and machinability, and critical sealing surfaces are ground to fine finishes to ensure the lip seals perform correctly over years of service. Together, these material choices result in a lawnmower gearbox for sale that delivers consistent performance across the full service life without unexpected failures.

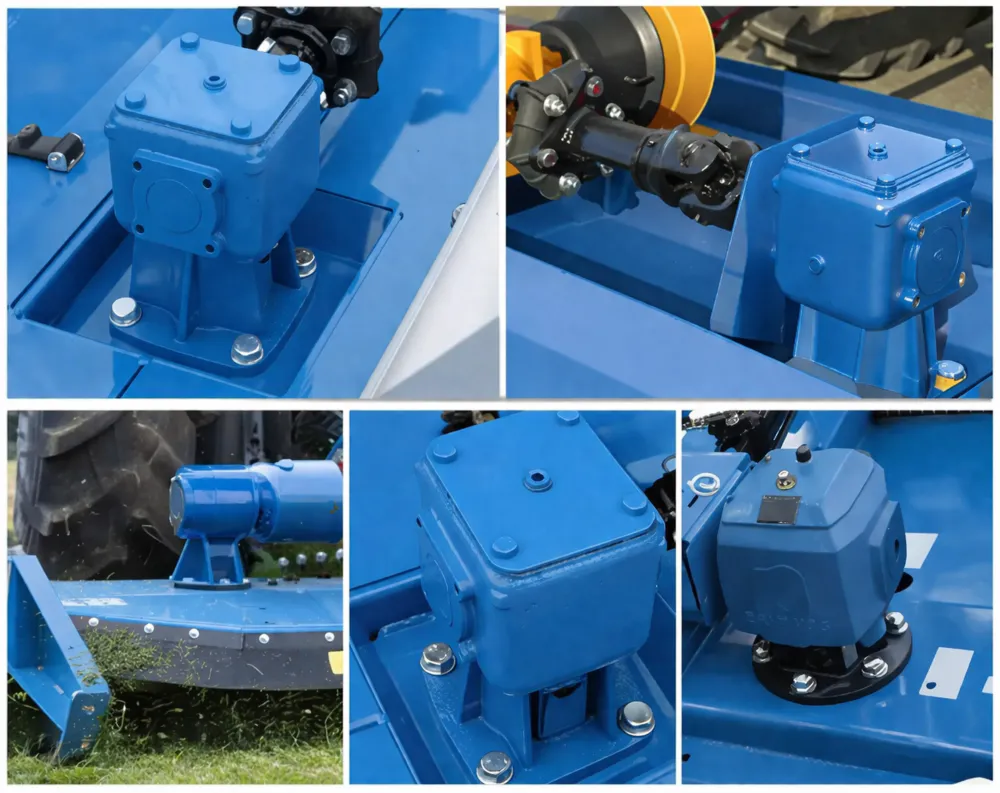

5. Application Scenarios for the EP-LF205 Lawn Mower Gearbox
The EP-LF205 agricultural lawnmower gearbox is a versatile power-transfer component that finds application across a wide range of mowing and vegetation management operations. Below are the primary scenarios where this lawnmower drive gearbox delivers consistent, reliable performance.
Sugarcane Field Perimeter Mowing
In the sugarcane growing regions of São Paulo, Goiás and Paraná, field boundaries must be regularly mowed to control weed growth and reduce fire risk during dry season. The EP-LF205 lawn mower gearbox provides the sustained 30 HP capacity needed for dense, fibrous vegetation while the cast iron housing withstands the abrasive dust typical of these environments.
Cattle Ranch Pasture Management
Across Brazil’s cerrado and pantanal cattle-raising regions, maintaining pasture quality requires consistent mowing of invasive shrubs and rank grass clumps. A reliable ride on lawnmower gearbox like the EP-LF205 allows ranchers to run extended mowing days without stopping for overheating or drive failures.
Orchard and Vineyard Row Maintenance
Fruit orchards and vineyards require precise finishing mower work between crop rows where ground vegetation must be kept low without disturbing shallow root systems. The EP-LF205 lawn mower gearbox’s low-noise operation and smooth torque delivery help operators maintain consistent cutting height and blade speed through tight row spacings.
Highway and Infrastructure Corridor Mowing
Government and municipal contractors maintaining roadsides and highway corridors across Brazil’s extensive federal road network depend on heavy-duty lawnmower gearbox parts that can handle the unpredictable debris and steep embankment angles common to roadside mowing. The EP-LF205 lawn mower gearbox’s robust housing and wide operating temperature range suit this demanding application well.
Sports Field and Turf Finishing
Sports facilities and golf courses that use large-area finishing mowers for fairway or field maintenance benefit from the EP-LF205 lawn mower gearbox’s controlled gear ratio options, allowing finer cut quality at lower blade speeds where turf damage is a concern, or higher blade tip velocity for rapid large-area coverage during off-season maintenance.
Municipal Green Space Management
City parks departments and green infrastructure teams managing large public spaces across Brazilian metropolitan areas require self propelled lawnmower gearbox components that can withstand multi-shift daily use. The EP-LF205 lawn mower gearbox is rated for continuous operation and supports scheduled preventive maintenance intervals compatible with municipal fleet management practices.
6. Installation and Operating Precautions
Correct installation and operating practices are critical to realizing the full service life of the EP-LF205 lawn mower gearbox. The following precautions are based on field experience with this product class and should be followed by all installation and maintenance personnel.
Assembly Quality: During installation or removal of the lawnmower gearbox parts, never use a hammer or heavy mallet to drive components onto or off the shafts. Impact loading during assembly distorts bearing races and gear bores, initiating premature wear that is not immediately visible but will shorten gearbox life significantly. Always use a proper press or puller tool. When ordering replacement parts, confirm compatibility with the EP-LF205 lawn mower gearbox model. Apply a thin coat of anti-friction, anti-corrosion compound to the output hollow shaft bore before fitting the bushing and hub assembly — this protects contact surfaces against fretting corrosion and simplifies future disassembly.
Mounting Orientation: The EP-LF205 lawn mower gearbox is designed for near-horizontal input shaft orientation typical of tractor PTO-to-mower deck configurations. Vertical or steeply inclined mounting orientations are not recommended for this gearbox without verifying oil level adequacy. In a non-standard vertical orientation, the oil sump geometry may place the lower gear set submerged while the upper bearings run partially dry, causing localized overheating and seal distortion. If a vertical mount is genuinely required by the application, increase the oil fill volume accordingly and monitor operating temperature during the first few hours of use.
Lubricant Selection: Under normal operating conditions, use EP90 (extreme pressure hypoid gear oil, SAE 90 grade) or an equivalent that meets the API GL-4 or GL-5 classification. Do not mix different lubricant grades or brands within the housing. In high-temperature Brazilian summer conditions where ambient temperatures regularly exceed 35°C, consider a slightly higher viscosity grade (e.g., SAE 140) if the gearbox housing surface temperature under sustained load exceeds 70°C. Fresh oil retains its film strength and anti-wear additives; replace the oil at the recommended interval regardless of apparent cleanliness.
7. Regulatory Standards and Compliance
Agricultural machinery gearboxes are subject to a range of safety and quality regulations depending on the country of operation. Buyers and operators should be aware of the standards applicable to their market when selecting a lawn mower gearbox for commercial field use.
Brazil
In Brazil, the primary regulatory framework governing agricultural machinery safety is Norma Regulamentadora No. 12 (NR-12), administered by the Ministry of Labour and Employment (MTE). NR-12 establishes minimum requirements for the design, manufacture, installation, and use of machinery and equipment, including rotary mowers and their drive components. Operators using PTO-driven rotary mowers equipped with a lawn mower gearbox must ensure that rotating shafts, couplings, and gearbox housings are fully guarded per NR-12 specifications. The Associação Brasileira de Normas Técnicas (ABNT) additionally publishes relevant standards including ABNT NBR 14653 (machinery safety assessment) and ABNT NBR ISO 11684 (safety signs on agricultural machinery) that apply to assembled mower systems in Brazilian commercial operations. The Instituto Nacional de Metrologia, Qualidade e Tecnologia (INMETRO) may require conformity assessment for certain machinery categories sold in the Brazilian domestic market.
European Union
In EU member states, agricultural machinery including right angle gearbox for lawn mower assemblies must comply with the Machinery Directive 2006/42/EC when supplied as part of a complete machine assembly, which requires CE marking. Related standards include EN ISO 4254-7 (agricultural machinery — safety for rotary mowers) and EN ISO 11684 (safety signs). PTO-connected driveline components must also meet EN 1152 requirements for associated safety hardware.
United States
In the United States, agricultural equipment and riding lawn mower transmission components are subject to OSHA 29 CFR Part 1928 (Occupational Safety and Health Standards for Agricultural Operations) and relevant ANSI/ASABE standards. ANSI B71.4 covers commercial turf care equipment safety, while ASABE S493 addresses tractor-implement PTO shaft guarding. Equipment sold to the US market may also need to reference relevant American Gear Manufacturers Association (AGMA) quality standards for gear geometry and quality classification.
ISO International Standards
Globally applicable ISO standards relevant to this product include ISO 6336 (calculation of load capacity of spur and helical gears), ISO 23509 (bevel and hypoid gear geometry), and ISO 9001:2015 quality management system standards. Compliance with ISO 9001 by the manufacturing facility is a significant quality assurance indicator for B2B buyers evaluating a supplier for lawnmower gearbox replacement at scale.
