1. Professional Technical Specification Matrix
| Parameter Category | Valor de especificación técnica | Engineering Standard / Material |
|---|---|---|
| Torque Capacity (Nominal) | 850 Nm – 2,450 Nm | Optimized for Heavy-Duty Mulching |
| Speed Ratio Range | 1:1.46 / 1:1.92 / 2.5:1 | Bevel & Spur Gear Combinations |
| Input Shaft Specification | 1-3/8″ Z6 / Z21 Spline | SAE Standard Cold-Drawn Steel |
| Output Shaft Configuration | Tapered Spline or Parallel Keyway | 40CrMnTi Alloy with Case Hardening |
| Lubrication Methodology | Full Oil Bath (EP90 / ISO VG 220) | High-Pressure Additive Compatible |
| Ingress Protection (IP) | IP67 (Dust-Tight, Water-Immersion) | Viton Double-Lip Seal System |
| Rango de temperatura de operación | -25°C to +115°C | Thermal Expansion Compensated |
| Material de vivienda | HT250 Grey Cast Iron / QT450 Ductile Iron | Vibration-Damping Structural Cast |
| Gear Manufacturing Standard | AGMA Class 10 / ISO 1328 Grade 6 | Precision Shaved and Lapped Teeth |
| Bearing Life (L10) | > 5,000 Hours Continuous Duty | SKF / NSK High-Load Tapered Bearings |
| Vibration Threshold | < 2.8 mm/s (RMS) | Dynamic Balancing at 1.2x Op-Speed |
| Weight (Net) | 45 kg – 110 kg | Variant-Dependent |
| Mounting Interface | Universal 4-Bolt / 6-Bolt Flange | ISO 500 Compatible |
| Surface Finish | Anti-Corrosive Epoxy Powder Coat | UV and Chemical Resistant (Green/Yellow) |
| Max Input Power | 40 HP – 120 HP | Continuous Rating at 540 RPM |
| Nivel de ruido | < 85 dB(A) at 1 Meter | Acoustic Optimized Housing |
| Oil Capacity | 1.2L – 3.5L | Internal Baffle to Prevent Foaming |
| Heat Dissipation Factor | Integrated External Fins | High-Conductivity Alloy Ribs |
| Safety Factor | 2.5x Peak Static Load | Finite Element Analysis (FEA) Tested |
| Seal Integrity | Pressure-Relief Breather Plug | One-Way Valve to Prevent Vacuum |
| Backlash Range | 0.08 mm – 0.15 mm | Shim-Adjusted During Assembly |
| Gear Tooth Geometry | Gleason Spiral Bevel System | Uniform Load Distribution |
| Hardness Level | HRC 58-62 (Surface) | Vacuum Carburizing Process |
| Shaft Concentricity | T.I.R < 0.03 mm | Laser Verified Alignment |
| Certification | CE, ISO 9001:2015, NR-12 Compliant | Global Export Standard |
2. [Brazil] Extreme Operating Conditions Field Study
Regional Focus: Mato Grosso, Paraná, and Rio Grande do Sul
In Brazil, agricultural machinery operates under “Tropicalized” conditions. The Latossolo Vermelho (Red Clay Soil) found in the Center-West region exhibits high plasticity when wet and extreme hardness when dry. For a rotary ditcher gearbox, this means the mechanical resistance varies drastically within a single acre. During the Safra (main harvest) and Safrinha (second harvest) cycles, machines are often required to run 24/7. Our field study in Sorriso, MT, revealed that standard European gearboxes often fail due to overheating caused by the combination of high ambient temperatures (40°C+) and the constant high-viscosity resistance of the clay. Ever-power gearboxes address this through enhanced thermal dissipation fins and high-flow internal lubrication channels specifically modified for the Brazilian market.
Seasonal Challenges
Mato Grosso Soybean Harvest: Rapid drainage trenching is required to prevent waterlogging during the heavy rainy season (Dec-Feb). Our gearbox handles the abrasive silica content in the soil that typically degrades inferior seals.
Regulatory Landscape
NR-12 Compliance: Every ever-power gearbox distributed by Agrinulear Nucleo Agro meets the rigorous Brazilian NR-12 safety standards, ensuring that power transmission points are properly guarded and fail-safe mechanisms are integrated for operator protection.

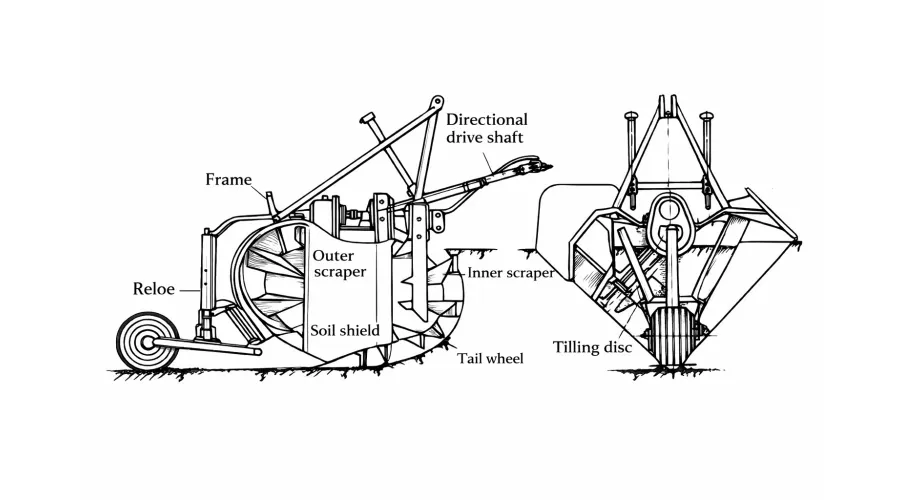

3. Anatomy & Working Mechanism: The Science of Ditching
The Kinetic Path
The process begins at the Tractor PTO, where rotational energy is sent through a PTO Drive Shaft to the gearbox input. Inside, a set of spiral bevel gears changes the axis of rotation by 90 degrees. Unlike standard mowers, the ditcher gearbox often incorporates a secondary reduction stage using parallel spur gears to achieve the exact torque-to-speed ratio needed for the ditching blades to ‘eject’ soil away from the trench effectively.
Our engineers have optimized the Gleason tooth profile to minimize energy loss. By reducing friction at the tooth-mesh point, we reduce internal heat buildup—a leading cause of gearbox failure in tropical climates. The use of ductile iron (QT450) for the housing provides the structural rigidity to maintain gear alignment even when the flail mower strikes a hidden stump or large stone.
Engineering Innovations
Structural Rigidity: FEA-tested ribbing on the housing to resist torsional stress during 45-degree angle ditching operations.
Advanced Sealing: Multi-labyrinth seals prevent the entry of fine “Poeira” (Brazilian red dust) which acts as an abrasive paste when mixed with oil.
Balanced Harmonics: Every unit is vibration-tested to ensure it does not contribute to fatigue failure in the mower’s frame.
4. Engineer’s Field Notes: 5 Global Success Stories
Case #1: Sugar Cane Drainage in Ribeirão Preto, Brazil
The Challenge: “Our previous gearboxes were seizing every 200 hours due to the extreme mud consistency in the rainy season. The downtime was costing us thousands per hectare.” — Luciano, Fleet Manager.
The ever-power Solution: We implemented the EP-HD Series with a triple-lip Viton seal and a reinforced output flange. We also upgraded the oil to a high-temp synthetic blend.
The Result: 1,200 hours of operation without a single seal failure. Oil temp stayed below 90°C despite 38°C ambient air.
Case #2: Roadside Maintenance in Queensland, Australia
The Challenge: High-impact strikes with hidden basalt rocks. Gear shafts were snapping at the keyway.
The ever-power Solution: Switched to a tapered spline shaft design using 42CrMo4 steel, providing superior shock load distribution.
The Result: Zero shaft breakages reported over 18 months of intensive roadside clearing.
Case #3: Corn Belt Drainage in Iowa, USA
The Challenge: Farmers needed a “One-Stop” gearbox that could handle both vertical mulching and horizontal ditching without swapping components.
The ever-power Solution: Developed a Multi-Axis Output Gearbox with a selectable power divider.
The Result: Increased machine versatility by 40%, allowing farmers to complete field prep in fewer passes.
Case #4: Rice Paddy Irrigation in Kano, Nigeria
The Challenge: High humidity and brackish water were corroding the gearbox housing externally and infiltrating the breathers.
The ever-power Solution: Epoxy-zinc coating and an elevated breather snorkel system.
The Result: Eliminated internal rust and extended gearbox life by 3x in wetland conditions.
Case #5: Orchard Management in Punjab, India
The Challenge: Small tractors (under 40HP) were struggling with the weight and power draw of traditional heavy ditchers.
The ever-power Solution: An Aluminum Alloy Housing variant with high-efficiency gears to maximize power-to-weight ratio.
The Result: Successful integration with compact tractors, allowing mechanization in narrow orchard rows.
5. Universal Compatibility & Brand Replacement
Our Rotary Ditcher Gearboxes are designed as high-performance, drop-in replacements for leading global brands. We ensure dimensional accuracy and torque parity to minimize installation time.
Suitable Replacement for:
- Comer Industries (T-Series / L-Series)
- Bondioli & Pavesi (S2 / S3 / S4 Gearboxes)
- Walterscheid (Custom Ditcher Drives)
- Maschio Gaspardo (Mulcher Drive Units)
- Kuhn / John Deere (Standard Mower Gearboxes)
- Bush Hog / Woods (Rotary Cutter Gearboxes)
Descargo de responsabilidad: All manufacturer names, trademarks, and part numbers are used for identification and reference purposes only. Our products are engineered by ever-power to meet or exceed original specifications and are not manufactured by the referenced brands unless stated otherwise.
6. Integrated Power Transmission Ecosystem
At ever-power, we don’t just sell gearboxes; we provide complete drivetrain solutions. Our “One-Stop-Shop” philosophy ensures that every component in your agricultural machine works in perfect harmony.
PTO Drive Shafts
A wide range of PTO shafts including Wide-Angle (CV), Friction Clutch, and Shear Bolt types, all featuring safety covers and telescoping joints.
Transmission Components
Precision-made sprockets, chains, pulleys, and couplings. We also supply hydraulic cylinders for ditching depth control.
Complete Machineries
Consult with us for OEM-ready Flail Mowers, Mulchers, and Seeders equipped with pre-installed ever-power gearboxes.
7. Why Choose Us?
1. Comprehensive Solutions: We understand the importance of having reliable, compatible components in your machinery. By offering both agricultural gearboxes and PTO shafts, we ensure that every part works together perfectly, improving efficiency and reducing downtime.
2. Built for Durability: Our PTO shafts are constructed from high-quality materials to withstand the toughest working conditions. Whether you’re powering heavy-duty equipment or maintaining small-scale farming machinery, our PTO shafts provide the strength and reliability you need.
3. Seamless Integration: Designed to perfectly complement our agricultural gearboxes, our PTO shafts ensure smooth power transmission, enhancing the overall performance of your equipment. This seamless integration allows you to maximize productivity and reduce mechanical failures.
4. Customizable Options: We offer a wide range of PTO shaft options, from standard configurations to custom solutions, ensuring that your specific needs are met. Whether you’re working in agriculture, construction, or any related field, we’ve got the perfect PTO shaft for you.
5. Cost-Effective: By sourcing both agricultural gearboxes and PTO shafts from a single supplier, you save on costs and streamline your procurement process. Our products are designed to offer long-lasting value, reducing the need for frequent replacements.
6. Reliable Service and Support: Our team of experts is always available to assist with product selection, installation, and maintenance advice. We are committed to ensuring that your machinery runs smoothly and efficiently, so you can focus on your work without interruptions.
8. Related Products-PTO Shaft
At EVER-POWER, we not only focus on producing high-quality agricultural gearboxes, but also on manufacturing a critical component that powers various agricultural and industrial applications – the power take-off shaft (PTO shaft). Our PTO shafts are designed to meet the demanding requirements of modern agricultural equipment, providing durability and efficiency for a wide range of operations. Compatible with local Brazilian industries.
Our PTO Shaft product types include: PTO Shaft for Discbines, PTO Shaft for Feed Mixers, PTO Shaft for Flail Shredders, PTO Shaft for Round Balers, and PTO Shaft for Square Balers.
Frequently Asked Questions
Q1: How can I ensure the rotary ditcher gearbox is compatible with my specific tractor PTO shaft splines?
A1: Our gearboxes feature modular input shafts that support standard 1-3/8″ Z6 or Z21 splines, ensuring a perfect fit for any tractor.
Q2: What is the recommended maintenance interval for gearboxes operating in high-dust regions like Mato Grosso?
A2: In heavy dust, we recommend checking oil levels weekly and performing a full synthetic oil flush every 250 operating hours to maintain performance.
Q3: Can the ever-power gearbox handle the shock loads of a mulcher hitting hidden tree stumps or rocks?
A3: Yes, our ductile iron housings and case-hardened bevel gears are specifically designed to absorb and dissipate high-energy shock loads without fracturing.
Q4: Why should I choose the Agrinulear Nucleo Agro agency for my Brazil-based agricultural machinery supply needs?
A4: We provide localized technical support, rapid spare parts availability across Brazil, and deep expertise in NR-12 compliance for all your machinery components.
Q5: What are the primary signs that my current ditcher gearbox requires immediate replacement or professional overhaul?
A5: Look for excessive heat (above 100°C), unusual metallic grinding noises, visible oil leakage at the seals, or increased vibration in the PTO shaft.
Q6: Does your gearbox offer different speed ratios for tractors with 540 RPM versus 1000 RPM PTO outputs?
A6: We offer multiple internal gear sets allowing you to maintain optimal blade speed regardless of whether your tractor outputs at 540 or 1000 RPM.
Q7: Are the internal gears of the ever-power series forged or machined from solid bar stock for durability?
A7: Our gears are precision-forged from 20CrMnTi alloy and then CNC-ground to ensure maximum grain flow strength and perfect tooth engagement geometry.
Q8: How does the cost of ever-power gearboxes compare to high-end European brands for large-scale Brazilian farms?
A8: We offer superior value by providing European-grade engineering and materials at competitive prices, backed by local Brazilian logistics and technical support teams.
Q9: Is it possible to customize the mounting flange dimensions for specialized ditching equipment prototypes?
A9: Absolutely, our engineering team can modify the mounting patterns and shaft lengths to suit your specific OEM equipment requirements and design parameters.
Q10: What lubrication type is most suitable for gearboxes operating in the high humidity of Northern Brazil?
A10: We recommend high-performance EP90 gear oil with anti-foaming and moisture-inhibiting additives to protect internal components from corrosion in humid, tropical environments.
