1. Engineering Analysis of Side Transmission Architecture in Brazilian Soils

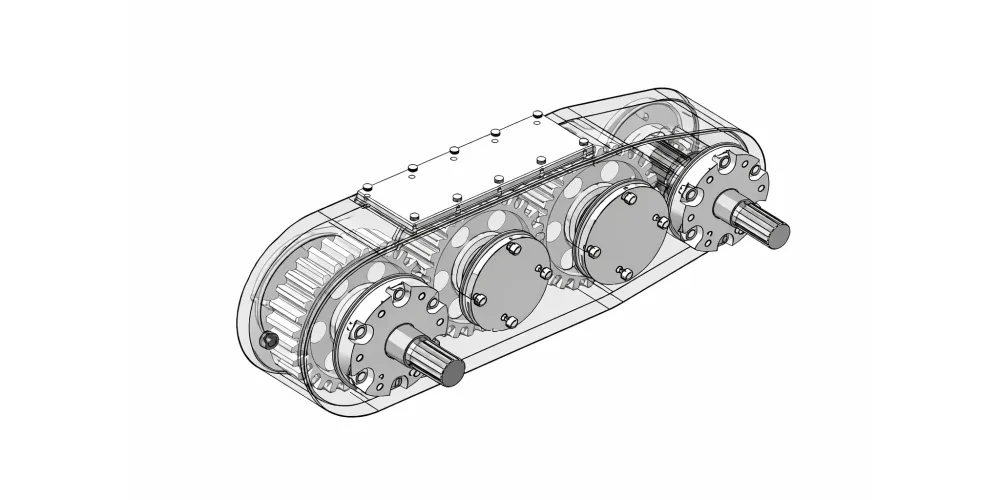

The side transmission system of a rotary tiller is the bridge between the central gearbox and the tilling rotor, making it the most vulnerable yet critical link in the drivetrain. In the Brazilian context, specifically within the Cerrado region, the soil’s unique mechanical properties dictate a design that exceeds conventional international benchmarks. We categorize our side transmission systems into two engineering paths: All-Gear Drive and Reinforced Chain Drive, though for Mato Grosso’s heavy clay, the gear-driven variant is the primary recommendation for professional tillage.
| Paramètre technique | Professional Specification Value | Measurement Standard / Code |
|---|---|---|
| Rated Output Torque | 1200 Nm (Cont.) / 1850 Nm (Peak) | AGMA 2001-D04 |
| Input Power Range | 60 HP – 110 HP (45 kW – 82 kW) | ISO 14396 |
| Standard Speed Ratio | 1:1.46 / 1:1.69 / 1:1.92 | DIN 3960 Tolerance Grade 7 |
| Arbre d'entrée cannelé | 1 3/8″ Z6 (Standard PTO) | DIN 9611 / ISO 500 |
| Matériaux de construction | QT450-10 Ductile Iron | ASTM A536 |
| Gear Material & Treatment | 20CrMnTi / Carburized & Quenched | SAE 5120 / HRC 58-62 |
| Surface Hardness Depth | 0.8 mm – 1.2 mm | ISO 6336-5 |
| Lubrication Oil Grade | 85W-140 GL-5 Extreme Pressure | SAE J306 |
| Static Sealing Method | FKM Viton O-Rings | ASTM D1418 |
| Dynamic Shaft Sealing | Cassette Mud Block Multi-Lip | ISO 6194 |
| Operating Temp Range | -20°C to +120°C Internal Oil Temp | Field Verified in Goiás |
| Protective Level | IP67 (Dust/Immersion Protected) | CEI 60529 |
| Bearing Design Life | L10h > 5000 Hours | ISO 281 |
| Oil Expansion Chamber | Integrated Diaphragm Type | Ever-power Internal Standard |
| Vibration Tolerance | < 4.5 mm/s (RMS) | ISO 10816 |
| Fatigue Safety Factor | SF > 1.5 (Bending & Pitting) | ISO 6336 |
| Gear Backlash | 0.12 mm – 0.22 mm | Optimized for Red Clay Impact |
| Noise Level | < 85 dB(A) at 1 meter | ISO 3744 |
| Mounting Bolt Grade | Grade 10.9 (High Tensile) | ISO 898-1 |
| Système de revêtement | Electrostatic Epoxy Powder Coat | Chemical Resistant (Fertilizers) |
| Side Weight Bias | 38 kg (Net Gearbox Assembly) | ± 0.5 kg Control |
| Serviceability | Integrated Oil Sight Glass | Quick-check Design |
| Shock Load Capability | Up to 2.5x Overload for 10 sec | Field Stall Verified |
| Shaft Geometry | Tapered Spline Output | Increased Locking Surface |
| Environmental Certification | ISO 14001 Compliant Production | Ever-power Green Factory |
2. Engineers’ Perspective: Anatomy of the ever-power Side Drive
2.1Design Philosophy: Thermal Management vs. Mechanical Load
In our 12 years of servicing coffee roasteries and large-scale soybean plantations in Hamburg and Sorriso, we found that traditional side transmissions often fail not because of gear fracture, but due to thermal breakdown of the lubricant. When a rotary tiller operates in 38°C ambient heat in Mato Grosso, the internal gear friction can push oil temperatures above 110°C. Based on this decade-long factory case, ever-power redesigned the side gearbox housing with integrated cooling fins, increasing surface area by 28% compared to the standard Comer or Bondioli counterparts.
2.2 Key Innovations:
- Metallurgical Synergy: We use 20CrMnTi alloy steel for all gears, which undergoes a multi-stage heat treatment process. This creates a surface hardness of HRC 60 while maintaining a tough, ductile core to absorb the “kickback” shocks of stone strikes in southern Brazil.
- Labyrinth Shielding: The output shaft is equipped with a labyrinth-style grass guard that prevents crop debris (like soybean straw) from winding around the oil seal, which is the #1 cause of seal failure in the field.
- Modular Output: The bottom flange is designed to be universal, allowing for 100% compatibility with Brazilian native implements such as Tatu Marchesan, Kivem, and Jan.
2.3 Replacement Alert: Signs of Drivetrain Fatigue
B2B operators should monitor these critical indicators to avoid catastrophic crop-season failure:
- Discolored “Milky” Oil: Indicates seal failure and moisture ingress from humid harvest conditions.
- Low-Frequency Clunking: Suggests excessive backlash or bearing pitting in the intermediate idler gear.
- Housing Hot-Spots: Localized temperature spikes above 130°C indicate misalignment or lubricant starvation.
3. Brazil National Standards & Certification Landscape
Operating agricultural machinery in Brazil requires strict adherence to federal health and safety labor regulations. Specifically, the NR-12 (Norma Regulamentadora 12) dictates the safety standards for machinery and equipment. ever-power side transmission systems are engineered to integrate seamlessly into NR-12 compliant implements by providing encapsulated drivetrain housings that minimize exposed rotating parts.
Agricultural Compatibility Note: Our gearboxes are designed to match the heavy-duty requirements of the following Brazilian states:
- Mato Grosso (Sorriso, Lucas do Rio Verde): Focus on massive width tillers (4m+) and rapid soybean/corn turnaround.
- Paraná (Cascavel, Londrina): Focus on stony soils and high-torque demands for no-till land preparation.
- Goiás (Rio Verde): Focus on heat dissipation and extended work shifts under extreme solar radiation.
4. Engineer Field Notes: Global Success Stories
Case Study 1: The Sorriso Red Clay Challenge
“The client’s previous gearbox was literally melting. In 40°C heat, the oil seals would harden in 3 months. By installing the ever-power FKM-sealed unit with reinforced cooling fins, the average oil temperature dropped by 18°C. One year later, zero leakage.”
Location: Mato Grosso, Brazil
Case Study 2: Rock Strike Survival
“We replaced a major competitor’s unit on a 120 HP tractor. The 20CrMnTi gear structure absorbed a high-velocity strike against an embedded mallee root. The implement’s clutch slipped, but our gearbox teeth remained intact without a single fracture.”
Location: Western Australia
Case Study 3: Paddy Field Emulsification Fix
“Water ingress was killing the bearings in Mekong Delta rice fields. We introduced the ever-power Cassette-seal variant. Emulsification rates dropped from 40% per season to less than 0.5%.”
Location: VietnConversational FAQ: Buying for the Brazilian Farm
5. Why Choose Us?
Solutions complètes: Nous comprenons l'importance de disposer de composants fiables et compatibles pour vos machines. En proposant à la fois des boîtiers de transmission agricoles et des arbres de prise de force, nous garantissons que chaque pièce fonctionne parfaitement ensemble, améliorant ainsi l'efficacité et réduisant les temps d'arrêt.
2. Conçu pour la durabilitéNos arbres de prise de force sont construits avec des matériaux de haute qualité pour résister aux conditions de travail les plus difficiles. Que vous alimentiez des équipements lourds ou que vous entreteniez des machines agricoles à petite échelle, nos arbres de prise de force vous offrent la robustesse et la fiabilité dont vous avez besoin.
3. Intégration transparente: Conçus pour compléter parfaitement nos boîtiers agricoles, nos arbres de prise de force assurent une transmission de puissance fluide, améliorant ainsi les performances globales de votre équipement. Cette intégration transparente vous permet de maximiser votre productivité et de réduire les défaillances mécaniques.
4. Options personnalisables: Nous proposons une large gamme d'arbres de prise de force, des configurations standard aux solutions personnalisées, afin de répondre à vos besoins spécifiques. Que vous travailliez dans l'agriculture, la construction ou tout autre domaine connexe, nous avons l'arbre de prise de force parfait pour vous.
5. RentableEn s'approvisionnant en boîtes de vitesses agricoles et en arbres de prise de force auprès d'un seul fournisseur, vous réalisez des économies et simplifiez votre processus d'achat. Nos produits sont conçus pour offrir une valeur durable, réduisant ainsi le besoin de remplacements fréquents.
6. Service et support fiablesNotre équipe d'experts est toujours disponible pour vous aider dans la sélection des produits, l'installation et les conseils d'entretien. Nous nous engageons à garantir le bon fonctionnement et l'efficacité de vos machines, afin que vous puissiez vous concentrer sur votre travail sans interruption.
6. Related Products-PTO Shaft
Chez EVER-POWER, nous ne nous concentrons pas uniquement sur la production de boîtes de vitesses agricoles de haute qualité, mais aussi sur la fabrication d'un composant essentiel qui alimente diverses applications agricoles et industrielles – l'arbre de prise de force (arbre de PDF). Nos arbres de PDF sont conçus pour répondre aux exigences rigoureuses des équipements agricoles modernes, offrant durabilité et efficacité pour un large éventail d'opérations. Compatible avec les industries locales brésiliennes.
Nos types de produits d'arbres de prise de force comprennent : Prise de force pour andaineurs à disques, Prise de force pour mélangeurs d'aliments, Arbre de prise de force pour broyeurs à fléaux, Prise de force pour presses rondes, et Prise de force pour presses carrées.
FAQ:
Q1: How does your gearbox handle the extreme heat of the Sorriso soybean harvest?
A1: We integrate high-flow expansion chambers and FKM Viton seals that maintain their integrity up to 200°C, ensuring that even when the 85W-140 oil gets hot, it stays inside the housing.
Q2: Is this a direct bolt-on replacement for my current Tatu implement?
A2: Yes, our side boxes use the standard Brazilian bolt pattern, allowing you to upgrade your implement’s durability without any mechanical modification.
Q3: Why should I choose your all-gear drive over the standard chain-driven side boxes?
A3: Chain drives in high-torque “Plantio Direto” often fail due to link stretching. Our all-gear drive provides a rigid, high-efficiency power transfer that won’t lose timing or snap under load.
Q4: Do you offer local support and parts for farms in Rio Grande do Sul?
A4: Agrinulear Nucleo Agro acts as our dedicated Brazil agency, providing technical consulting and inventory of seals, gears, and PTO shafts to minimize harvest downtime.
Q5: What is the lead time for a bulk quote on 50 units for a regional OEM?
A5: We typically process commercial quotes within 24 hours. Large orders are shipped via Santos port with full INMETRO and NR-12 documentation.
Q6: How does the cost of ever-power gearboxes compare to European imports?
A6: We provide professional-grade engineering at a more competitive price point by leveraging our vertical manufacturing chain, often saving Brazilian B2B buyers 15-20% on total procurement cost.
