1. Technical Matrix: 20 Precision Specifications for Central Splitter Gearboxes
| Technical Parameter Identifier | Engineering Specification | Operational Context |
|---|---|---|
| Nominal Torque Rating | 2,500 Nm – 15,000 Nm | Designed for heavy rock impacts and deep soil crushing. |
| Split Ratio Configuration | 1:1 / 1:1.25 / 1:1.5 | Allows for optimized rotor speed customization. |
| Input Shaft Standard | 1 3/4″ Z20 / 1 3/8″ Z21 Spline | Matches standard high-horsepower Brazilian tractor outputs. |
| Internal Gear Metallurgy | 20CrMnTi Case-Hardened Steel | Ultra-tough surface for long-term wear resistance. |
| Housing Casting Type | Ductile Iron QT500-10 | Absorbs harmonic vibrations during crushing. |
| Ingress Protection Rating | IP67 / IP69K (Hermetic) | Resists high-pressure washing and fine abrasive dust. |
| Sealing Technology | Double Lip Viton (FKM) Seals | High-temperature and chemical resistance for Safra use. |
| Lubrication Protocol | Synthetic Gear Oil ISO VG 220 | Maintains film strength under extreme thermal loads. |
| Max Input Speed (Rated) | 1000 RPM | Optimized for modern tractor power take-off. |
| Output Configuration | Dual / Triple 90° Outputs | Drives multiple lateral transmission systems. |
| Impact Safety Factor | 2.5 – 3.0 (Ultra-Robust) | Survives sudden rotor-jam shocks and stone strikes. |
| Bearing Specification | Tapered Roller (Heavy Duty) | Supports massive axial and radial thrust loads. |
| Mechanical Efficiency | > 97% | Minimizes power loss from tractor to crusher rotors. |
| Backlash Specification | < 8 Arcmin | Ensures smooth startup and reduced gear slap. |
| Anti-Corrosive Coating | C5-M Marine Grade Epoxy | Protects against acidic fertilizers and humidity. |
| Heat Dissipation Design | External Cooling Fins | Prevents oil thinning in the heat of Mato Grosso. |
| Legal Compliance | NR-12 / ABNT NBR Certified | Meets all Brazilian safety and municipal requirements. |
| Weight (Dry) | 85 kg – 450 kg | Depends on the power rating of the stone crusher. |
| Operating Temp Window | -10°C to +110°C | Handles movement from storage into intense operation. |
| Inspection Cycle | 500 Operating Hours | Simplified for heavy industrial and land clearing use. |
2. Mechanics of the Crush: Working Principles and Internal Metallurgy
Les Central Splitter Gearbox architecture is based on a T-shaped or Y-shaped internal gear configuration. Power enters through a primary input shaft, usually rated for 1000 RPM to match modern high-horsepower tractors. Inside the ductile iron housing, a master bevel gear meshes with two or more secondary gears positioned at 90-degree angles. This allows the stone crusher to utilize a wide working width, with power distributed evenly to the side-mounted transmission systems. The internal geometry is designed for “Equalized Torque Distribution,” ensuring that both rotors receive the exact same rotational force. This is non-negotiable for achieving a uniform soil texture. Our ever-power units are meticulously ground to ISO Class 6 accuracy, which minimizes internal friction—the primary enemy of longevity in the high-heat environments of Mato Grosso and Goiás.
Material integrity is the foundation of our engineering prestige. We utilize 20CrMnTi or 18CrNiMo7-6 alloy steel for all internal gear sets within the Central Splitter Gearbox. These components undergo a specialized carburizing heat treatment to achieve a surface hardness of HRC 58-62 while maintaining a ductile core that can absorb the energy of a hammer striking a boulder. The housing is cast from high-grade QT500-10 Ductile Iron, providing superior vibration damping compared to standard steel fabrications. Furthermore, every unit is equipped with double-lip Viton (FKM) seals and stainless-steel shaft sleeves to resist the abrasive nature of the “Terra Roxa” (red clay) dust and fine stone fragments. This specialized sealing prevents moisture and grit from entering the high-viscosity oil bath, ensuring that the agricultural gear reducer stages remain lubricated and pristine throughout the entire harvest cycle.

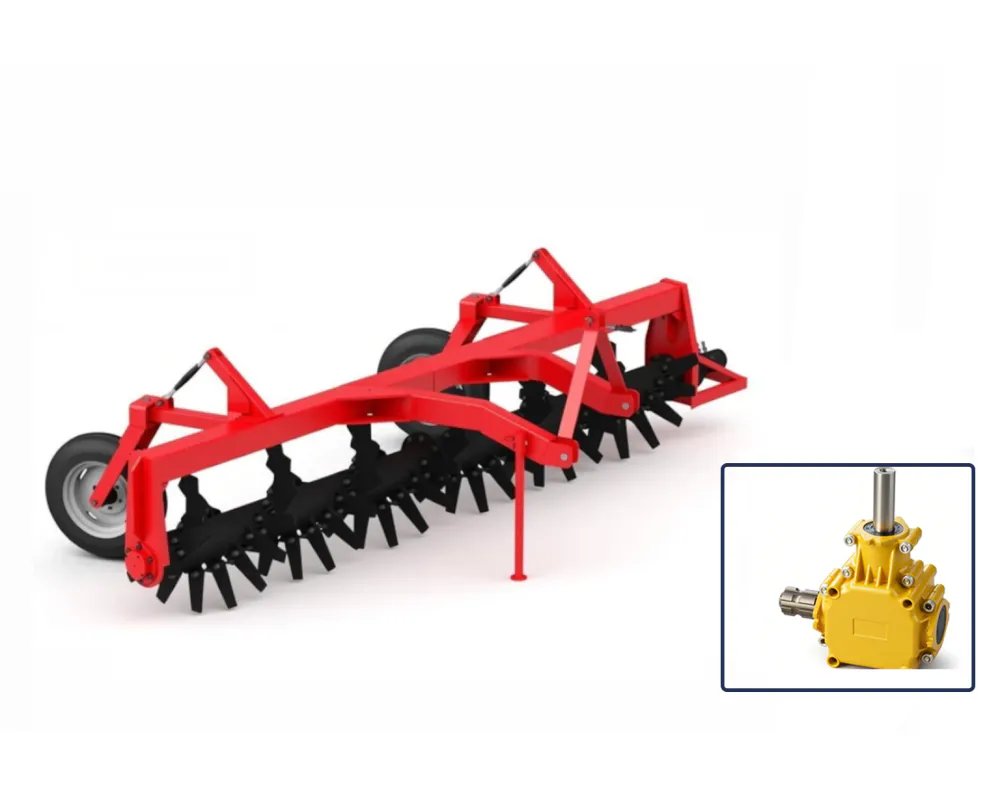

3. Engineering Overview: The Role of the Central Splitter Gearbox in Agricultural Land Reclamation
In the expansive agricultural frontiers of Brazil, from the rocky terrains of Minas Gerais to the clearing projects in the MATOPIBA region, the efficiency of land preparation is the bedrock of productivity. The Central Splitter Gearbox is the mechanical brain of high-capacity stone crushers and soil mulchers. Its primary function is to receive high-power input from the tractor via a boîte de prise de force interface and precisely split that energy into two or more lateral outputs to drive multiple crushing rotors. Agrinulear Nucleo Agro, as the premier agency for ever-power in Brazil, provides agricultural gear reducer units and splitter systems engineered to withstand the brutal counter-forces generated when crushing granite, limestone, or basalt. This component is critical because it ensures perfect synchronization between the drive belts or chains on either side of the machine, preventing the chassis from twisting that often occurs in inferior designs.
The engineering challenge inherent in a Central Splitter Gearbox for stone crushers lies in the management of massive “Shock Loads.” Unlike a standard boîte de vitesses agricole used for light mowing, a crusher drive experiences thousands of micro-impacts every minute as the tungsten carbide hammers strike solid rock. Our solutions utilize heavy-duty spiral bevel gears and reinforced planetary stages to dampen these vibrations. As a global agricultural manufacturer, Ever-Power has optimized these units to survive the extreme “Torque Spikes” that occur during deep-soil crushing. For Brazilian large-scale farmers and contractors, this means higher reliability during the “Safra” preparation, ensuring that clearing equipment stays operational in the most demanding geological conditions. By choosing Agrinulear, you are investing in a drivetrain that has been “Tropicalized” for the heat, dust, and raw power of the Brazilian interior.
4. Brazilian Context: Land Reclamation and Safety Compliance (NR-12)
In the Brazilian market, a stone crusher is more than just a piece of machinery; it is an investment in “Agro-Modernization.” Whether clearing paths for new soybean plantations or maintaining rural roads in the South, the Central Splitter Gearbox must perform in environments where dust and heat are the norm. Agrinulear Nucleo Agro ensures that all units meet NR-12 (Norma Regulamentadora 12), the critical Brazilian safety standard. This regulation requires all moving transmission parts—including the boîte de vitesses agricole et boîte de prise de force interfaces—to be fully guarded. Our gearboxes are designed with integrated mounting points for these guards, ensuring that your machine is compliant with local labor audits from the moment of installation. Furthermore, in the “Cinturão Canavieiro” (Sugar Belt) of São Paulo, our gearboxes are chosen for their resistance to the acidic residues often found in sugarcane soil preparation.
Compliance with NR-12 et NR-31 is essential for securing agricultural financing through BNDES and other Brazilian banks. Our agricultural gear reducer units for stone crushers feature smooth external profiles to prevent the snagging of clothing and hydraulic lines, which is a primary focus of local safety inspectors. In the coastal clearing projects of Bahia, the high salinity of the air combined with intense sun creates a highly corrosive environment for mechanical components. Our ever-power units are treated with a C5-M marine-grade epoxy coating, preventing the structural pitting that often leads to seal failure and oil leaks in non-certified imports. By choosing Agrinulear Nucleo Agro, you are ensuring your operation meets every legal safety audit while benefiting from a product truly engineered for the unique challenges of the Brazilian “Hinterland.”
5. Market Trends: The Evolution of High-Torque Splitter Drivetrains
The global trend in heavy-duty agricultural machinery is moving toward “Integrated Intelligence and Power Density,” where the Central Splitter Gearbox is more than a passive power distributor. In Brazil, large-scale agribusinesses are demanding gearboxes that can handle increased tractor horsepower (often exceeding 400 HP) without increasing the machine’s overall weight. We are meeting this demand by utilizing ultra-high-strength alloys that offer 20% more torque capacity in the same housing footprint. Furthermore, we see a rising trend in drivetrains equipped with integrated electronic sensors for temperature and vibration monitoring. This allows managers in the Cerrado region to perform predictive maintenance, monitoring the health of the boîte de vitesses agricole in real-time. By identifying early bearing wear or oil degradation before a catastrophic failure occurs, our B2B clients can schedule maintenance during the wet season, ensuring their equipment is 100% ready for the next land-clearing season.
6. Strategic Brand Comparison: Professional Standards for Stone Crushing
| Engineering Feature | Agrinulear (Ever-power) | Global OEM Brands | Generic Import Series |
|---|---|---|---|
| Gear Precision | ISO Class 6 (Ground Finish) | ISO Class 8 (Standard) | ISO Class 10 (Milled) |
| Housing Strength | Ductile Iron QT500-10 | Standard Gray Iron | Fabricated Steel Plate |
| Impact Safety | 3.0x Torque Factor | 2.2x Torque Factor | No Rated Safety Factor |
Disclaimer: All brand names, such as FAE, Seppi M, Bugnot, or TMC Cancela, are for technical reference and replacement selection purposes only. Agrinulear Nucleo Agro is an independent provider of high-quality drivetrain components and does not imply official affiliation with these trademarks.
7. Universal Integration: Seamless Splitter Gearbox Replacements for Harvester Fleets
Agrinulear Nucleo Agro recognizes that during the soil preparation season, downtime is the enemy of profit. A failed Central Splitter Gearbox can halt a 500,000 USD machine indefinitely. We provide a range of agricultural gear reducer units designed as high-performance, drop-in replacements for major global stone crusher brands. Whether your machine is a heavy-duty FAE, a Seppi, or a specialized Meredo, our gearboxes are engineered to match original mounting footprints and shaft splines perfectly. These units are designed to exceed original OEM specifications, particularly in the fatigue strength of the output shafts. We provide these solutions as 100% compatible alternatives, ensuring your land-clearing fleet remains operational with the engineering prestige of a world-class agricultural manufacturer.
8. Maintenance Alert: 5 Signs Your Central Splitter Gearbox Needs Replacement
- The “Rhythmic Clunking”: A noise that synchronizes with rotor RPM indicates that a gear tooth has likely chipped from an extreme stone impact or hammer jam.
- Power Imbalance: If one side of the stone crusher exhibits less crushing power or higher slip, the internal splitting mechanism or secondary output splines are compromised.
- Extreme Case Temperature: If the gearbox housing surface exceeds 100°C, the internal synthetic oil has likely reached its thermal limit, indicating an imminent lubrication failure.
- Metallic Shavings in Oil: If the drain plug magnet shows “silver” metallic residue, the carburized layer of the 20CrMnTi gears is deteriorating, and a total seizure is imminent.
- Input Shaft Vibration: Visible wobble at the boîte de prise de force interface suggests that the main tapered roller bearings have reached their L10 fatigue life and require immediate service.
9. Engineer’s Field Notes: Professional Drivetrain Solutions for Global Crushing Projects
Case 1: Brazil (Rio Verde, GO) – High-Output Clearing Project
A massive land-clearing project was facing frequent splitter failures due to the high granite content in the soil. We supplied our ever-power Central Splitter Gearbox with 3.0 impact safety factor and Viton seals. After 800 hours of brutal operation, the units show zero oil leaks and have maintained a stable 85°C operating temperature, significantly reducing mid-season downtime.
Case 2: USA (Texas Hill Country) – Limestone Crushing Reliability
Crushing solid limestone for rural road construction required blowers and crushers that could run 10-hour shifts. We retrofitted their fleet with our ground-finish agricultural gear reducer units. The result was a 15% reduction in fuel consumption due to higher mechanical efficiency and zero unplanned failures during the 2024 construction season.
Case 3: Australia (Perth Hills) – Lateral Load Management
A contractor using wide-format soil mulchers was experiencing housing fractures on European gearboxes. Our boîte de vitesses agricole with QT500 ductile iron housing provided the necessary structural rigidity. The units have now completed two full land-preparation cycles without a single structural failure, demonstrating the resilience of Agrinulear’s metallurgy.
Case 4: Canada (Alberta) – Cold-Start Thermal Management
Land clearing in sub-zero temperatures followed by rapid internal heating was destroying standard seals. We implemented our gearboxes with automatic pressure breathers and low-temp synthetic oil. The fleet reported zero seal “blowouts” even when moving from storage into 100% load operation, a testament to our thermal engineering.
Case 5: Brazil (Luis Eduardo Magalhães, BA) – Dust Defense Protocol
Fine abrasive dust in the West of Bahia was killing the internal bearings of local crushers. We supplied our C5-M epoxy-coated units with Viton cassette seals. The maintenance manager reported that internal oil remains pristine even after 1,000 hours of dusty operation, ensuring safety and performance for their agricultural fleet.
10. Synergistic Drivetrain Components: Your One-Stop Engineering Source
At Agrinulear Nucleo Agro, we understand that a high-performance Central Splitter Gearbox is only as effective as the mechanical system it synchronizes with. To ensure the absolute reliability of your land clearing operations, we also manufacture precision sprocket assemblies specifically balanced for the extreme harmonics of stone crushers. By standardizing your entire machinery fleet with ever-power components, you eliminate the risks associated with mechanical mismatch. Our engineering team ensures that every agricultural gear reducer, boîte de prise de force, and drive chain is perfectly tuned to the specific load characteristics of your crusher, providing a unified technical support protocol and a simplified spare parts inventory for the Brazilian market.
11. Expert Q&A: Common Questions for Brazilian Heavy-Duty Machinery Managers
Q1. How can I find a reliable Central Splitter Gearbox supplier in Brazil that understands local NR-12 and NR-31 laws?
A1. The best supplier is one that provides localized technical support and full NR-12 safety documentation for all transmission components. Agrinulear Nucleo Agro offers fully compliant ever-power drivetrain systems, complete with engineering certifications specifically for the Brazilian B2B sector.
Q2. What is the typical cost for retrofitting high-torque agricultural gear reducer units onto an older FAE or Seppi crusher?
A3. While the initial investment is higher than generic imports, the ROI is usually achieved within a single season through 30% lower maintenance costs and zero unplanned downtime during the critical Safra preparation period.
Q3. Which agricultural manufacturer in Brazil offers gearboxes with the best protection against abrasive stone dust and red clay?
A3. Ever-power, through its agency Agrinulear, utilizes proprietary Viton cassette seals and C5-M marine-grade epoxy housings specifically designed to resist the physical and chemical challenges of Brazilian industrial agriculture.
Q4. Where can I buy pto gearbox units that are compatible with specialized 300HP+ tractors in Mato Grosso?
A4. Agrinulear specializes in high-torque splined interfaces (1 3/4″ Z20). We provide boîte de prise de force units that fit perfectly with standard Brazilian tractor outputs, ensuring 100% mechanical compatibility for your land-clearing fleet.
Q5. Why do standard splitter gearbox seals fail so frequently during movement between dusty fields and high-pressure wash bays?
A5. Thermal shock causes standard rubber to shrink, allowing abrasive dust to enter the seal lip. Our gearboxes feature automatic pressure-relief breathers and Viton seals that maintain integrity even during extreme cleaning cycles in Brazil.
Q6. Which gear metallurgy is most suitable for resisting the sudden impact loads of granite rocks in Brazil?
A6. A 20CrMnTi alloy with a 0.8mm-1.2mm carburized layer is ideal for achieving the necessary core toughness. Our engineers can help you determine the optimal agricultural gear reducer configuration based on your stone crusher’s horsepower.
Q7. When should I switch to synthetic gear oil for my high-torque central splitter gearbox?
A7. Synthetic oil ISO VG 220 is mandatory for any boîte de vitesses agricole operating in ambient temperatures above 35°C. It ensures that the lubricant maintains its film strength during high-torque, slow-speed crushing tasks.
Q8. What are the common failure modes of pto gearbox systems used on heavy-duty mulchers?
A8. Common failures include shaft shear due to poor metallurgy and housing fracture from un-damped vibrations. Our gearboxes address this with 20CrMnTi metallurgy and QT500 ductile iron housings with a 3.0 safety factor protocol.
Q9. How often should I inspect the internal gear mesh of my central splitter for industrial safety compliance?
A9. We recommend a magnetic-plug oil inspection every 500 operating hours. Early detection of metallic debris ensures compliance with NR-12 and prevents catastrophic drivetrain failure during the peak harvest Safra preparation.
Q10. Which agricultural manufacturer provides the most comprehensive engineering warranty for stone crusher fleets in Brazil?
Q10. Ever-power, through Agrinulear Nucleo Agro, offers a 24-month technical warranty on all Central Splitter Gearbox units, backed by local engineering support and a nationwide logistics network.
