Application des réducteurs agricoles dans le réducteur de rotation inverse/enfouisseur de pierres

1. Comprehensive Technical Specification Matrix (32-Point Benchmark)

*Data based on the ever-power HZ-RR300 series. Custom configurations available for OEM orders above 50 units.

Voir Plus de Produits

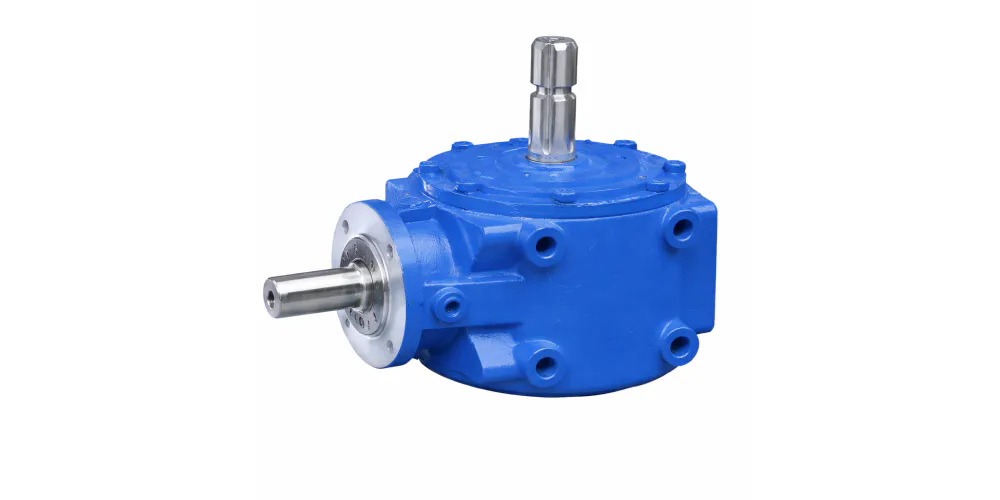

2. Reverse Rotation Anatomy: How a Stone Burier Gearbox Works

The “Reverse Rotation” function is not merely a direction of travel; it is a fundamental kinetic requirement for stone-burying machines. Standard tillers rotate with the direction of travel (Forward Rotation), which can cause the machine to “run away” on hard ground. Conversely, a stone burier rotor rotates counter to the direction of travel. This creates a powerful lifting action that pulls soil and rocks upward against a sifting grate.

2.1 Four Key Internal Components:

• Input Bevel Pinion: Receives 540 RPM from the tractor PTO. Engineered from forged 20CrMnTi with a deep carburized case to withstand the constant shock loads of stone impact.
• Intermediate Idler System: In ever-power high-ratio models, a specialized idler gear is often utilized to achieve the reverse rotation logic within a compact housing, ensuring the output shaft spin is counter-clockwise relative to the forward tractor movement.
• Tapered Roller Bearings: Unlike standard ball bearings, we use oversized tapered roller bearings (TIMKEN or equivalent grade) to handle the significant axial thrust generated by the spiral bevel gear engagement under heavy clay load.
• The Cassette Seal: This is a multi-part seal assembly where the sealing lips run against an internal sleeve rather than the shaft itself. In Brazil’s dust-choked harvest season, this prevents soil ingress from grinding down the shaft surface.



3. Adaptability to Brazil’s “Latossolo” (Oxisol) Soils

In the Brazilian Midwest, the high iron and aluminum content of the soil, combined with its clayey texture, results in a soil that becomes highly cohesive when wet and rock-hard when dry. A stone burier gearbox must possess specific “Brazilianized” performance metrics:



4. Global Competitive Analysis: Why Ever-Power Leads in the B2B Sector

Purchasing managers for Brazilian implement manufacturers (OEMs) often compare our products with established brands like Comer, Bondioli & Pavesi, or Walterscheid. Here is a technical breakdown of how we differentiate:

Disclaimer: All competitor brand names and series (Comer, Bondioli, etc.) are used for reference and replacement suitability purposes only. ever-power is an independent manufacturer of high-compatible transmission components. We do not claim affiliation with the aforementioned trademark holders.

5. [Brazil] National Standards & Certification Landscape

Entering the Brazilian market requires strict adherence to local safety and quality regulations. All ever-power gearboxes supplied through Agrinuclear Nucleo Agro are designed to facilitate OEM compliance with the following:

• NR-12 (Segurança no Trabalho em Máquinas e Equipamentos): Our gearboxes are designed to accommodate the necessary safety guards and shielding for rotating shafts. We provide dedicated mounting points for PTO covers that meet the strict shearing and entanglement protection standards of NR-12.
• INMETRO Standards: While gearboxes themselves may not always require direct INMETRO labeling, our manufacturing facilities adhere to ISO 9001:2015, which is recognized by Brazilian certification bodies as the baseline for industrial quality.
• ABNT (Associação Brasileira de Normas Técnicas): We match ABNT NBR ISO spline profiles, ensuring that Brazilian-made universal joints and PTO shafts connect seamlessly without play or premature wear.

Neighboring Markets: For manufacturers exporting to Argentina or Paraguay, our gearboxes also meet the IRAM standards and MERCOSUR trade bloc safety directives, facilitating easier cross-border agricultural trade.



6. Global Success Stories





7. Industry Dynamics: 2025/2026 Agricultural Trends

The global agricultural machinery sector is moving rapidly toward Digitalization and Electrification. In Brazil, we are seeing a significant shift toward “Smart Implements.” ever-power is currently prototyping gearboxes with integrated IoT Vibration & Temperature Sensors. This allows large-scale farm managers in the Cerrado to monitor the health of their tillers from a central office via 4G/5G connectivity. Predictive maintenance is no longer a luxury; it is a necessity when a single day of downtime during the planting window can cost thousands of Reais per hectare.

Latest News: Recent reports from the Expointer 2025 show highlight a growing interest in hybrid-drive implements. We are actively developing a gearbox that accepts both PTO input and a secondary electric motor assist for high-density soil pockets, optimizing fuel efficiency for high-horsepower tractors.



8. When to Replace: Symptoms of Gearbox Fatigue

B2B maintenance managers should instruct field operators to watch for the following “Critical Signs of Impending Failure” to avoid field-side disasters:

1. The “Milky” Oil Indicator: If oil appears white or frothy, water has bypassed the seals. Change immediately and inspect breathers.
2. Metallic Whining: A high-pitched “singing” noise indicates that the gear mesh has shifted or teeth are pitting. This often happens if bearing pre-load is lost.
3. Excessive Vibration: If the gearbox housing feels hot to the touch (>90°C) and vibrates excessively, internal bearing races may have collapsed.
4. Leaking Pinion Shaft: Oil spray on the PTO shaft is a sign that the front seal has been cut by crop debris. Failure to address this will lead to a dry gearbox within hours.





Frequently Asked Questions (B2B Conversational)

Q1: What is the estimated total cost of ownership over five years for these gearboxes in Brazil?

A1: While the initial quote might be slightly higher than generic imports, the ever-power units reduce the “hidden costs” of downtime and frequent seal replacements. When you factor in the extended bearing life and our 2-year industrial warranty in Brazil, most OEMs see a 20% reduction in total operational cost per hectare compared to standard-duty alternatives.

Q2: How does the reverse rotation gearbox handle the accidental impact of large Brazilian basalt rocks?

A2: We use a “triple-redundancy” protection strategy. First, the input shaft is designed with a specific weak point (shear bolt compatibility); second, our gears are case-hardened with a shock-absorbing core; and third, we offer an optional internal slip clutch that disengages the drive in milliseconds upon impact.

Q3: Which local supplier in Brazil provides after-sales parts and technical support for your stone burier units?

A3: Agrinuclear Nucleo Agro serves as our exclusive Brazil agency. We maintain a central hub for gear sets, seals, and complete housing replacements, ensuring that B2B clients in MT, PR, and RS receive parts within 24-48 hours. Our engineers are also available for on-site integration support for new implement designs.

Q4: Can we get a custom quote for a proprietary shaft design to fit our new prototype tiller?

A4: Absolutely. We specialize in OEM co-design. Whether you need a tapered shaft, a specific spline profile (like ANSI B92.1), or a non-standard mounting bracket, our factory can adjust production for batches as small as 50 units. We provide full CAD documentation for your design team to ensure perfect implement integration.

Q5: What lubrication is best suited for the extreme heat of the dry season in the Cerrado?

A5: We recommend a high-viscosity synthetic SAE 85W-140 with Extreme Pressure (EP) additives. This oil maintains its film strength even when the gearbox is running hot, preventing gear scuffing. Always look for GL-5 rating to ensure the additive package is sufficient for heavy-duty agricultural use.

Q6: Does ever-power provide the matching PTO shafts to ensure system-wide reliability for our machinery?

A6: Yes, we highly recommend purchasing the complete drivetrain as a system. Using an ever-power gearbox with our matched W Series PTO Shaft ensures that the torque ratings are balanced and the vibration harmonics are minimized, protecting the tractor’s power take-off and the implement’s gearbox simultaneously.

Q7: Why should we choose Agrinuclear over the cheaper local cast-iron gearboxes available in São Paulo?

A7: The difference is in the metallurgy and precision. Cheap local castings often have “voids” or internal cracks that lead to housing failure under the heavy stress of stone burying. Our QT450 nodular iron is ultrasonically tested. Furthermore, our gears are precision ground, not just hobbed, which means higher efficiency and much longer service life.

Q8: How do your gearboxes comply with the latest NR-12 safety regulations for farm workers in Brazil?

A8: Safety is built into the casting. Our housings feature standardized mounting bosses for shaft guards and safety shields. We also offer “integral shielding” options that cover the input shaft directly, significantly simplifying the implementation of NR-12 compliance for the machine manufacturer.

Q9: Where can I find the serial number and technical plate on the gearbox for fleet tracking?

A9: Every ever-power unit has a laser-etched stainless steel plate on the upper housing. This includes the model number, gear ratio, and a unique QR code. When scanned, this code provides instant access to the digital manual, parts list, and the Agrinuclear support portal.

Q10: Which specific model is best for a 100 HP tractor working in heavy clay soils in the south of Brazil?

A10: For 100 HP applications, we suggest the EP-RR350 series. It features a heavy-duty casting and a 1-3/4″ output shaft. This unit has been specifically stress-tested for the dense clay and stone mixtures found in Paraná and Rio Grande do Sul, offering the best balance of price and durability.
