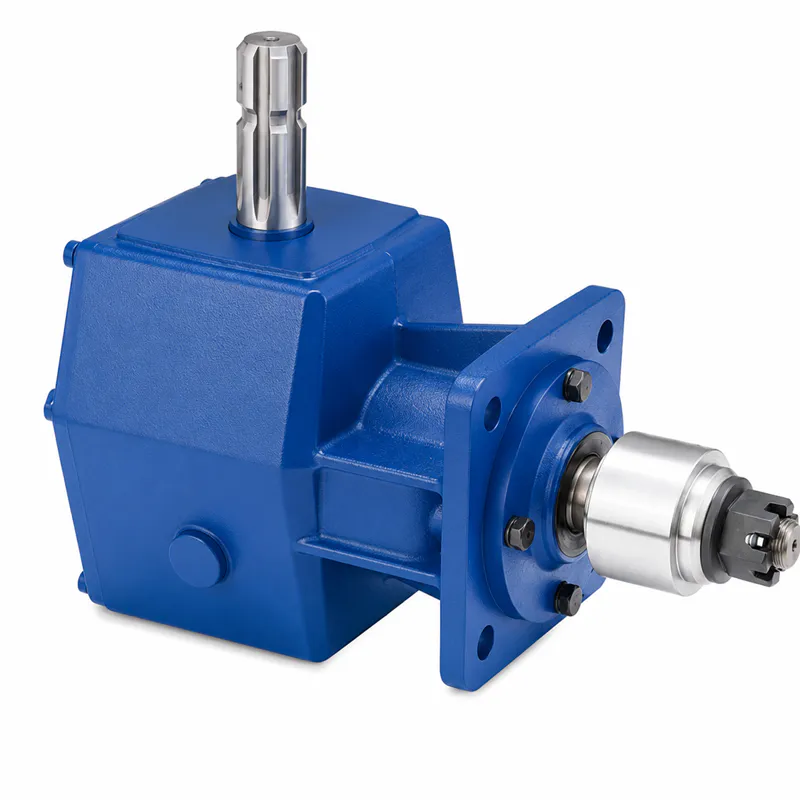

EP-HC-30-35HP Lawn Mower Gearbox
A three-variant agricultural lawn mower gearbox series covering 30–35 HP PTO-driven mowing applications through three precisely matched ratio options — 1:1.47, 1:1.69, and 1:1.93. The HC-X30 platform shares a common housing architecture, standardized shaft interface, and cone base aequilate spline shaft output across all three variants, giving OEM builders and replacement buyers a flexible, technically consistent family to work from.
1. Technical Specifications of Lawn Mower Gearbox
| Lawn Mower Gearbox Parameter | HC-01-609 | HC-01-723 | HC-01-611 |
|---|---|---|---|
| Gear Ratio | 1:1.47 | 1:1.69 | 1:1.93 |
| Number of Teeth | 15/22 | 13/22 | 15/29 |
| Module | 5.08 | 5.0 | 4.0 |
| Power Rating | 35 HP | 35 HP | 30 HP |
| Rated Input Speed | 540 RPM | 540 RPM | 540 RPM |
| Approx. Output Speed | ~794 RPM | ~913 RPM | ~1,042 RPM |
| Input Shaft | 1 3/8 Z6 | 1 3/8 Z6 | 1 3/8 Z6 |
| Output Shaft | Optic axis / Cone base aequilate spline shaft | Optic axis / Cone base aequilate spline shaft | Optic axis / Cone base aequilate spline shaft |
| Net Weight | 26.5 Kg | 26.5 Kg | 26.5 Kg |

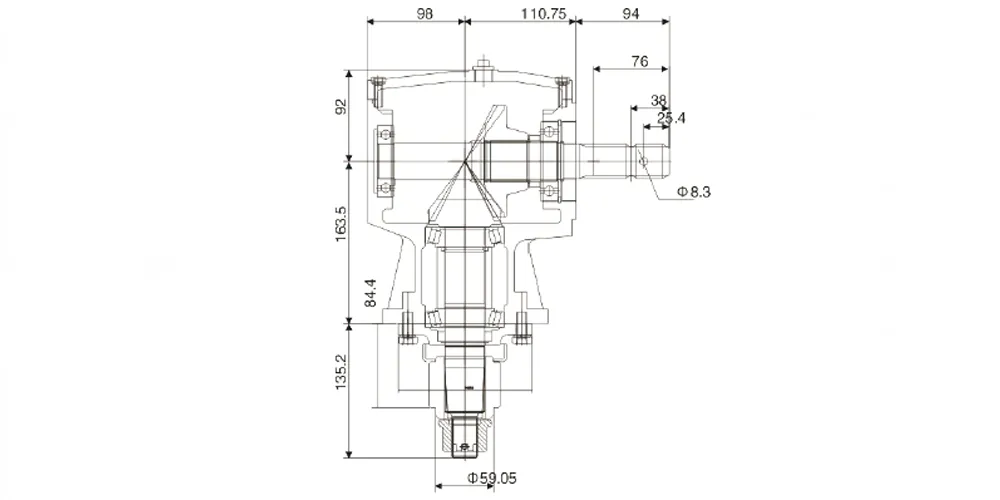

| Overall Dimensions (L×W×H) | 302.75 × 98 × 383.1 mm (approx., shared housing) | ||
| Drive Angle | 90° Right Angle | ||
| Gear Type | Spiral Bevel Gear | ||
| Lubrication | Sealed splash / SAE 90 EP gear oil | ||
| Output Bore (Ø) | Ø59.05 mm (housing base reference) | ||
2. How the EP-HC-30-35HP Lawn Mower Gearbox Works
All three variants in the HC-X30 series operate on the same fundamental right angle spiral bevel gear principle. Rotational power from the tractor PTO enters the lawn mower gearbox through the 1 3/8 Z6 six-spline input shaft at 540 RPM. Inside the grey iron housing, the input drive bevel gear meshes with the driven bevel gear at 90 degrees, redirecting and simultaneously accelerating the rotation before delivering it to the output shaft. The gear ratio and module specification define how much speed multiplication occurs and how much load-carrying capacity the tooth geometry provides for the power class of that variant.
In HC-01-609 (1:1.47, Module 5.08), the 15/22 tooth pair produces a relatively modest step-up — increasing the 540 RPM input to approximately 794 RPM at the blade shaft. The larger Module 5.08 tooth geometry provides higher tooth face area and load-carrying capacity at this ratio, making it well suited to sustained operation under moderate loads such as turf finishing and orchard floor management where power demands are consistent rather than impulsive. HC-01-723 (1:1.69, Module 5.0) uses a 13/22 tooth pair to produce approximately 913 RPM output — the mid-range setting covering the general-purpose agricultural mowing band. HC-01-611 (1:1.93, Module 4.0) drives the blade shaft to approximately 1,042 RPM using a 15/29 tooth pair, which is the established blade speed for heavy rotary mowing in dense field vegetation.
The cone base aequilate spline shaft output is a defining engineering choice in this lawn mower gearbox design. Unlike a straight parallel splined or simple keyed shaft, the cone base aequilate spline creates both a taper-interference fit and a spline torque path simultaneously. Under operational torsional loading, the cone geometry self-tightens against the blade hub bore while the splines carry the full transmitted torque without relying on a single key or friction alone. This dual-action engagement is particularly important at the higher-ratio HC-01-611 setting, where blade speed — and therefore rotational kinetic energy during a debris impact — is at its maximum. Sealed splash lubrication using SAE 90 EP gear oil circulates continuously through the housing during operation, and double-lip oil seals at both shaft entry points maintain the lubrication environment under the field conditions of Brazil’s humid growing seasons and Europe’s wet autumn mowing programs.
3. Five Key Advantages of the EP-HC-30-35HP Lawn Mower Gearbox
① Three Ratio Variants, One Shared Housing Platform
The HC-X30 series lawn mower gearbox is engineered as a coherent platform: all three lawn mower gearbox variants share the same housing casting, the same input and output shaft interface dimensions, and the same overall mounting footprint. For OEM builders, this means a single mower deck design can accept all three ratio configurations — enabling the same machine to be offered in three performance tiers without redesigning the deck structure or mounting hardware. For aftermarket buyers sourcing an agricultural lawn mower gearbox replacement, the shared housing means the replacement unit drops in without mechanical modification even if a different ratio is being specified for the new application.
② Cone Base Aequilate Spline Shaft for Superior Hub Retention
The cone base aequilate spline shaft output provides a mechanically superior connection to the mower blade hub compared to straight spline or keyed shaft designs. The conical taper creates a radial interference clamping load that increases under the torsional stress of mowing — meaning the harder the blade works, the tighter the hub engagement becomes. This self-tightening characteristic under load is a significant advantage in mower deck gearbox applications, where rotational energy spikes from blade-to-stone or blade-to-root impacts can momentarily reverse torque direction and loosen conventional keyed connections over time.
③ Module-Matched Gears for Appropriate Fatigue Life
Each variant’s gear pair is specified with a module matched to its power and ratio context: Module 5.08 for the 35 HP 1:1.47 variant, Module 5.0 for the 35 HP 1:1.69 configuration, and Module 4.0 for the 30 HP 1:1.93 unit. This deliberate matching ensures that tooth surface contact stress across all three variants is kept within appropriate fatigue limits for the rated load — rather than over-engineering the higher-speed variant with unnecessarily large teeth or under-specifying the lower-speed unit. The result is consistent service life expectation across the platform rather than one variant outlasting the others while another reaches its fatigue limit prematurely.
④ Standardized 1 3/8 Z6 PTO Input Across All Variants
Every model in the HC-X30 lawn mower gearbox series uses the 1 3/8 Z6 input shaft — the universal PTO connection dimension adopted under ISO 500 / ASABE S201 and recognized globally. This standardization means all three ratio variants connect directly to the same tractor PTO without any adapter hardware, and any PTO drive shaft purchased for one variant fits the others interchangeably. For fleet operators in Brazil, Australia, and the EU managing multiple machines across different ratio configurations, this input shaft standardization eliminates procurement complexity and ensures cross-fleet spare parts compatibility.
⑤ 35 HP Rating with Large-Module Gears in Lower Ratio Variants
At 35 HP, the HC-01-609 and HC-01-723 lawn mower gearbox variants sit above the standard 30 HP class of many comparable agricultural lawn mower gearbox products in this housing size. The higher power rating is achieved partly through the larger module gear geometry of these two variants — Module 5.08 and 5.0 respectively — which distributes the transmitted torque across greater tooth face area, keeping Hertzian contact stress within acceptable fatigue limits at the elevated power input. For operators running larger tractor engines on compact mower decks, the 35 HP rating provides genuine headroom rather than a nominal specification that fails under sustained near-maximum load.
4. Materials & Manufacturing Standards of Lawn Mower Gearbox
The EP-HC-30-35HP lawn mower gearbox series is built around a GG25 grey cast iron housing — the same grade used in high-cycle industrial gearbox applications for its combination of compressive strength, machinability to tight bore tolerances, and inherent vibration damping from the graphite microstructure in the alloy matrix. The housing serves as the reference structure for all three variants; gear pair and bearing positions are machined to common datum references across all configurations, ensuring that gear mesh geometry and shaft alignment are maintained consistently regardless of which gear set is installed.
Gear blanks for all three ratio pairs are produced from 20CrMnTi case-hardening alloy steel, following a carburize, quench, and temper heat treatment cycle. The resulting surface hardness of 58–62 HRC on the tooth flanks provides resistance to pitting, adhesive wear, and micro-pitting under the rolling contact conditions of spiral bevel gear mesh. Core hardness is maintained at approximately 30–35 HRC to provide impact toughness against the transient shock loads generated by blade debris strikes — a routine event in agricultural mowing that separates a well-specified lawn mower gearbox from lower-grade alternatives within a few hundred operating hours in the field. Gear tooth profiles are finish-ground after hardening to achieve DIN 8 accuracy class, controlling backlash, mesh noise, and contact pattern across the service life of all three variants.
Input and output shafts across the series are machined from 40Cr alloy steel with induction hardening at bearing seat and spline engagement zones. The cone base aequilate spline output shaft is machined to dimensional standards compatible with widely used agricultural implement blade hub designs in the European and South American markets. Bearing positions are specified using deep-groove ball bearings and, where shaft loading direction demands it, angular contact bearings — all in ISO standard dimensional series for global availability. Double-lip oil seals at both shaft entry points, combined with a housing breather plug for pressure equalization, complete the sealed lubrication system that protects the gear and bearing environment from field contamination across the service life of this agricultural gearbox.
5. Application Scenarios of Lawn Mower Gearbox
With three ratio configurations spanning 794 to 1,042 RPM blade output from a common housing, this lawn mower gearbox platform covers a broad range of agricultural and commercial mowing applications — from precision vineyard work to heavy roadside brush cutting.
Orchard & Vineyard Floor Management (HC-01-609)
The HC-01-609 variant’s 1:1.47 ratio and 794 RPM output makes it well matched to precision cutting applications in orchards and vineyards across Brazil’s São Paulo state, Chile’s central valley wine regions, and Southern Europe’s olive and almond plantations. Lower blade tip speed is preferred in these environments to minimize soil splash onto fruit, reduce surface root disturbance, and limit the spread of mown debris into irrigation lines or root zones. The 35 HP rating of this right angle gearbox for lawn mower use provides ample reserve capacity behind typical 40–60 HP compact vineyard tractors while maintaining the controlled blade speed these applications require.
General Pasture & Field Margin Mowing (HC-01-723)
The HC-01-723 at 1:1.69 ratio covers the general-purpose mowing band where most agricultural rotary cutting work is concentrated — maintained pasture, crop field margins, fodder grass management, and intermediate vegetation in mixed-use farm environments. Across Brazil’s Paraná and Rio Grande do Sul states, Argentina, and the European farm belt, this mid-range setting handles the standard mowing cycle tasks that account for the majority of seasonal field hours. At 913 RPM output from a 35 HP input, this agricultural lawn mower gearbox delivers balanced blade energy without the mechanical stress concentration that higher-ratio operation imposes on the output connection.
Dense Vegetation & Roadside Brush Cutting (HC-01-611)
The HC-01-611 at 1:1.93 ratio and 1,042 RPM blade speed is designed for the more demanding end of the mowing spectrum: thick seasonal grass, roadside brush, overgrown field borders, and land reclamation cutting where vegetation density creates high and variable blade loading. Municipal road maintenance contractors across Brazil’s highway network, and commercial agricultural contractors working in the Atlantic Forest transition zones, typically specify this lawn mower gearbox for deck configurations where maximum cutting throughput is the operational priority over fine finish quality. The 30 HP rating is appropriate for the power class of compact tractors commonly used in these roadside and reclamation mowing programs.
OEM Multi-Tier Commercial Mower Production
Equipment manufacturers building commercial finishing mowers, professional rotary cutters, and agricultural implement decks for global export markets use the HC-X30 series lawn mower gearbox as a single-family powertrain solution that spans their full product range. By specifying all three ratio variants from the same housing platform, OEM designers reduce tooling investment, simplify spare parts management across their dealer network, and present buyers with a logically tiered product range — entry-level orchard model, mid-range general farm model, heavy-duty roadside model — all sharing interchangeable mounting hardware and PTO shaft components. The self propelled lawn mower gearbox compatibility of the shared platform is a well-recognized advantage among OEM procurement teams in this segment.
Multi-Application Fleet & Rental Equipment
Agricultural machinery rental operations and contract mowing service businesses that serve diverse client types benefit from stocking the HC-X30 series lawn mower gearbox across all three variants at a common housing. A rental yard can offer the appropriate blade speed for each client’s application — turf finishing, pasture cutting, or brush clearing — without maintaining inventory of incompatible gearbox types. The shared mounting dimensions mean the same mower deck chassis can be re-equipped with any of the three variants between hire cycles, reducing capital investment in deck variants while extending the range of jobs the equipment can take on. This operational flexibility has driven adoption of the HC-X30 Lawn Mower Gearbox platform across rental operations in Southern Brazil, Portugal, and Australia.
6. Regulatory & Compliance Requirements by Market
Buyers integrating the EP-HC-30-35HP agricultural lawn mower gearbox series into finished mowing equipment should understand the regulatory context in their target markets.
European Union — Machinery Directive 2006/42/EC & EN ISO 4254-1
Finished PTO-driven mowing machines sold in the EU must carry CE marking under Machinery Directive 2006/42/EC. The harmonized standard EN ISO 4254-1 covers agricultural machinery safety and applies to tractor-mounted mowing implements. EN 1553 (agricultural machinery — self-propelled, mounted, semi-mounted, and trailed machines) also applies to these equipment categories. As a gearbox component, the HC-X30 series does not individually require CE marking; however, full component technical documentation including dimensional drawings, gear accuracy data, and material certificates can be provided to OEM builders for inclusion in their CE machine technical file. For EU municipal mowing applications, noise emission compliance under Directive 2000/14/EC may additionally apply.
Brazil — NR-31, ABNT & INMETRO
Brazil’s Regulatory Standard NR-31 (Segurança e Saúde no Trabalho na Agricultura, Pecuária Familiar, Agroindustrial e Florestal) is the primary field safety framework for agricultural equipment operators in Brazil, mandating guarding of all rotating PTO components and mechanical transmission elements. ABNT (Associação Brasileira de Normas Técnicas) publishes national standards aligned with ISO 4254 that cover agricultural implement safety design. INMETRO (Instituto Nacional de Metrologia, Qualidade e Tecnologia) oversees product conformity. For import classification, agricultural gearbox components are typically documented under HS 8433.90 in Brazilian customs records. Exporters should ensure wooden packaging complies with ISPM 15 phytosanitary treatment requirements.
United States — ASABE Standards & OSHA
The 1 3/8 Z6 input shaft across all three HC-X30 variants complies with ASABE S201, the dimensional standard for PTO shaft connections used in North American agricultural equipment. OSHA 29 CFR Part 1928 (Agricultural Operations) governs PTO guarding and power transmission safety requirements for agricultural equipment in the US. State-level road authority regulations may apply where HC-X30-equipped mowers operate on public roadsides, including requirements for slow-moving vehicle identification markings and PTO shaft guarding visible from the road. ASABE EP443 provides engineering practice guidance on safe power transmission equipment design relevant to this product category.
Australia — WHS Act, AS Standards & State Regulations
Australia’s Work Health and Safety Act 2011 and harmonized state WHS regulations govern agricultural and commercial mowing machinery safety. AS 4024 (safety of machinery) provides the national standard framework for mowing equipment design. In Queensland and New South Wales — where roadside mowing is a significant commercial activity — state road authorities impose specific requirements on mowing equipment including PTO guarding standards and reflective markings for equipment operating alongside traffic. Safe Work Australia’s guidance on managing risks of agricultural plant applies to tractor-mounted mowing implements using this lawn mower gearbox series. Buyers should confirm state-specific requirements before commissioning any new lawn mower gearbox installation on equipment that operates alongside public traffic or within 50 metres of active roadways.
Argentina, Uruguay & MERCOSUL Trade Area
Within the MERCOSUL trade bloc covering Brazil, Argentina, Uruguay, and Paraguay, agricultural equipment and power transmission components benefit from reduced import tariffs under the Common External Tariff framework when appropriately classified and documented. Argentina’s IRAM standards body publishes technical standards aligned with ISO for agricultural equipment, and the Ministerio de Trabajo’s occupational safety framework governs PTO guarding requirements on agricultural implements. Uruguayan importers should confirm current DGSA (Dirección General de Servicios Agrícolas) documentation requirements for agricultural component imports.
7. About Us – Lawn Mower Gearbox Manufacturer
We are a dedicated agricultural and industrial power transmission manufacturer with focused expertise in the design, precision production, and global distribution of lawn mower gearbox systems across the complete spectrum of PTO-driven agricultural mowing applications. Our production facilities are ISO 9001 certified and include dedicated CNC gear hobbing and grinding lines, in-house carburizing and heat treatment capability, and CMM-based dimensional inspection on all critical components as a standard process step.
WorkShop
9. Compatible Drive Components
The EP-HC-30-35HP lawn mower gearbox series functions as part of a complete PTO mowing drivetrain.
PTO Shaft — Connecting Tractor to Gearbox
All three HC-X30 variants accept PTO shafts with a 1 3/8 Z6 female coupling. At 30–35 HP, the drive shaft should be rated for the full torque range — appropriate universal joint cross size, tube wall thickness, and overrunning clutch specification are all important factors at this power level. Selecting the correct shaft length for your specific tractor-to-mower distance avoids operating angle issues and excessive vibration in the drivetrain. A full range of heavy-duty agricultural PTO shafts with CE-compliant guarding is available at PTO Shaft.
Lawn Mower Decks & Complete Mowing Systems
Complete mower decks and finishing mower units pre-configured for the HC-X30 cone base aequilate spline shaft output are available through our affiliated product network. Whether you need a single-blade rotary deck for the HC-01-609 vineyard application, a multi-blade finishing deck for HC-01-723 pasture work, or a heavy-duty rotary cutter compatible with the HC-01-611 high-speed variant, sourcing the deck from a compatible supplier eliminates shaft interface compatibility risk. View compatible mowing systems at Lawn Mower.
Foire aux questions
Q1. What is the difference between the three HC-X30 lawn mower gearbox variants, and how do I choose the right ratio for my application in Brazil?
The three variants differ in gear ratio, gear module, and power rating while sharing all other physical dimensions. HC-01-609 (1:1.47, 35 HP) is best for controlled cutting applications where blade speed should be moderate — orchard floors, turf finishing, and precision mowing around infrastructure. HC-01-723 (1:1.69, 35 HP) suits general agricultural pasture and field margin mowing — the standard productivity-focused setting for most Brazilian farm mowing programs. HC-01-611 (1:1.93, 30 HP) delivers the highest blade speed and is suited to dense vegetation, roadside brush, and land reclamation cutting where throughput takes priority.
Q2. What is a cone base aequilate spline shaft on a gearbox for lawn mower use, and why does it provide better hub retention than a standard keyed shaft?
A cone base aequilate spline shaft combines a tapered outer diameter with a longitudinal spline tooth form. When the blade hub is fitted onto the shaft and the retaining nut is torqued to specification, the taper creates a radial clamping force that locks the hub in place. Under operational load — including torque reversal during blade impact events — this clamping force increases rather than decreasing, which is the opposite behavior of a plain keyed shaft where impact loads tend to develop fretting in the keyway and progressively loosen the hub. For applications at 1,042 RPM blade speed where debris and stone impacts are common, the cone base aequilate spline design extends hub and output shaft service life significantly compared to keyed alternatives.
Q3. How does the shared housing platform of the HC-X30 series help reduce spare parts costs for agricultural lawn mower gearbox replacement programs in Europe?
Because all three variants — HC-01-609, HC-01-723, and HC-01-611 — use the same physical housing casting, the same bearing positions, and the same shaft entry seal dimensions, a workshop stocking parts for one variant automatically has coverage for all three. Oil seals, deep-groove ball bearings, and housing fasteners are identical across the series. For a European agricultural equipment dealer or contractor maintaining multiple machines with different ratio requirements, this means one SKU of each spare part covers the entire gearbox fleet rather than stocking three separate part numbers for each component type. This consolidation can reduce spare parts inventory value by 40–60% compared to running three separate gearbox product lines.
Q4. Which HC-X30 lawn mower drive gearbox variant is best for vineyard interrow mowing in Australia’s Margaret River wine region, and why?
The HC-01-609 (1:1.47 ratio, 794 RPM output) is the most appropriate variant for vineyard interrow mowing in Margaret River and similar Australian wine regions. Vineyard mowing between rows requires low blade tip speed to minimize soil splash onto fruit and canopy, reduce clipping propulsion that can damage vine cane and trellis wires, and limit disturbance of surface irrigation systems. At 794 RPM, the HC-01-609 produces a controlled cut without excessive kinetic energy at the blade tips. The 35 HP rating provides adequate power reserve behind the 50–70 HP compact tractors commonly used in Australian vineyard operations, including on the slight slopes typical of Margaret River’s undulating terrain.
Q5. What lawn mower gearbox parts are commonly replaced on the HC-X30 series, and how can I source them in Brazil or Argentina?
The primary service consumables across all three HC-X30 variants are: the input shaft double-lip oil seal, the output shaft double-lip oil seal, the deep-groove ball bearings at shaft support positions (standard ISO series — replaceable from bearing supply distributors in any major Brazilian or Argentine agricultural city), and the housing breather plug. A consolidated spare parts kit covering all consumables for one variant is available from us or from our regional distributors in São Paulo, Paraná, and Buenos Aires province. Bearing dimensions are interchangeable across FAG, SKF, NSK, and equivalent bearing brands widely stocked in South American agricultural equipment supply chains.
Q6. How do I identify when my existing agricultural lawn mower gearbox replacement is needed, and what are the early warning signs on an HC-X30 unit?
Early indicators that an agricultural lawn mower gearbox replacement may be approaching on the HC-X30 series include: unusual noise during operation — specifically a grinding, whining, or intermittent clunking sound under load that was not present when the unit was new; oil seepage visible around the input or output shaft seal area after wiping clean; elevated housing surface temperature after normal operating periods; perceptible output shaft wobble or end-play detectable by hand with the PTO disconnected; and vibration transmitted through the mower deck that feels rougher than normal. Any of these signs warrant inspection before the next mowing session rather than running until failure in the field.
Q7. When is a ride on lawn mower gearbox appropriate versus the HC-X30 tractor PTO-driven gearbox, and how do they differ in application?
A ride-on lawn mower gearbox typically refers to the small transmission within a compact ride-on mower that drives its ground wheels or blade deck from a small engine. The HC-X30 series is a fundamentally different product type: it is a PTO-driven agricultural bevel gearbox designed to transmit 30–35 HP from a tractor PTO shaft to the blade deck of a tractor-mounted or tractor-pulled cutting implement. The HC-X30 operates at much higher power levels, is mounted externally on the mower deck frame, and is driven by the tractor rather than being part of a self-contained unit. If you are working on a small ride-on consumer mower, you would need a different gearbox type entirely.
Q8. What is the lead time and best shipping route for ordering the EP-HC-30-35HP lawn mower gearbox series from overseas to buyers in Southeast Asia or India?
For standard stocked configurations of the HC-X30 series lawn mower gearbox, production-to-dispatch lead time is 7–15 business days. Sea freight to major Southeast Asian ports — Bangkok, Ho Chi Minh City, Jakarta, and Manila — adds 8–14 days transit depending on routing. To Indian ports (JNPT Mumbai, Chennai Krishnapatnam) sea transit is typically 12–18 days. All standard export shipments use ISPM 15 heat-treated wooden packaging. Full export documentation is provided as standard: commercial invoice, packing list, Certificate of Origin, and Bill of Lading. Air freight is available for urgent single-unit replacement orders at significantly higher freight cost. Contact us with your destination port and required quantity for a specific freight quotation and current lead time.
